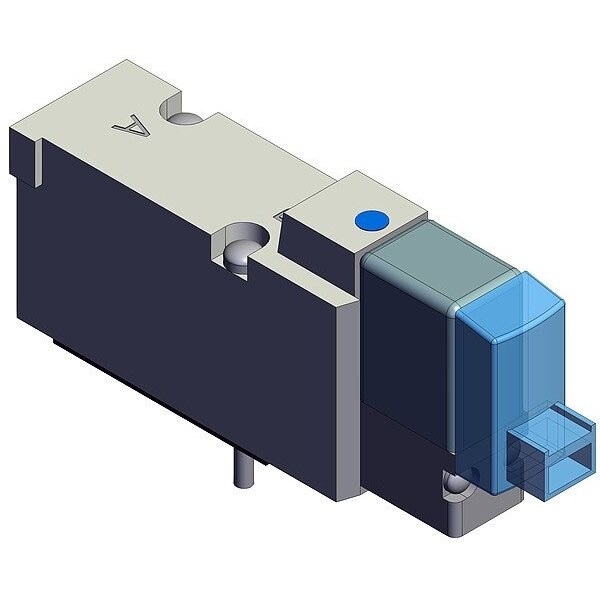

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5140-5LOU

  • Zoro # G621915018

product price:  $62.99
/ea

Key Features

Electrical Connection Type
Plug-In
Body Features
Single
Overall Height
39 3/16 mm
Actuator Type
Single Solenoid
Response Time
25 msec
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5140-5LOU
Zoro #
G621915018
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/16 mm
Wire Rope Length
73 mm
Overall Width
16 mm
Overall Length
73 mm

Details

Electrical Connection Type
Plug-In
Body Features
Single
Actuator Type
Single Solenoid
Response Time
25 msec
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
Pilot Type
Internal Pilot
Seal Material
Rubber
Valve Type
Spool
For Media
Air
Product Type
Solenoid Air Control Valve
Lubrication
Lubrication Not Required
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Operating Temperature - Maximum
50 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0.1 MPa
Item
Solenoid Air Control Valve
Voltage
24V DC
Body Material
Aluminum
Power Consumption
0.5 W
Operating Temperature - Minimum
-10 Degrees C
Body Style
Base-Mounted
Number of Ways
Five-Way
Return Action
Spring Return
Coefficient of Volume (Cv)
0.21
Valve Action
Normally Closed
Pilot Pressure
0.15 MPa
Override
Non-Locking
Operating Pressure - Maximum
0.7 MPa
Series
SYJ5000
Number of Ports
5
Number of Positions
Two-Position

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
