Shop SMC

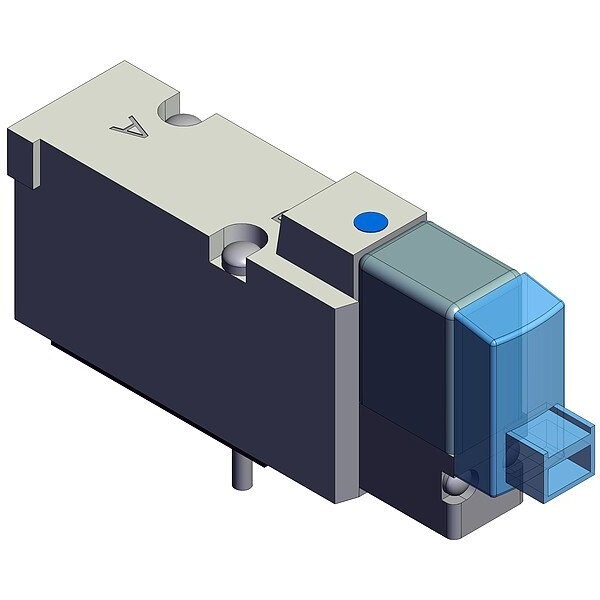

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5140-5LOZ

  • Zoro # G821915870

product price:
$
57.39
/ea

Key Features

Return Action
Spring Return
Operating Temperature - Maximum
50 Degrees C
Overall Width
16 mm
Seal Material
Rubber
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ5140-5LOZ
Zoro #
G821915870
UPC #
-
Country of Origin
Japan
Return Action
Spring Return
Operating Temperature - Maximum
50 Degrees C
Seal Material
Rubber
Item
Solenoid Air Control Valve
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Response Time
25 msec
Coefficient of Volume (Cv)
0.21
Electrical Connection Type
Plug-In
Pilot Type
Internal Pilot
Inlet Port Connection Gender
Female
Pilot Pressure
0.15 MPa
Number of Positions
Two-Position
Operating Temperature - Minimum
-10 Degrees C
For Media
Air
Number of Ways
Five-Way
Operating Pressure - Maximum
0.7 MPa
Operating Pressure - Minimum
0.1 MPa
Number of Ports
5
Product Type
Solenoid Air Control Valve
Voltage
24V DC
Override
Non-Locking
Actuator Type
Single Solenoid
Power Consumption
0.5 W
Series
SYJ5000
Valve Action
Normally Closed
Body Material
Aluminum
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Lubrication
Lubrication Not Required
Includes Solenoid Coil
Solenoid Coil Included
Valve Type
Spool
Body Style
Base-Mounted
Body Features
Single

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
