Shop SMC

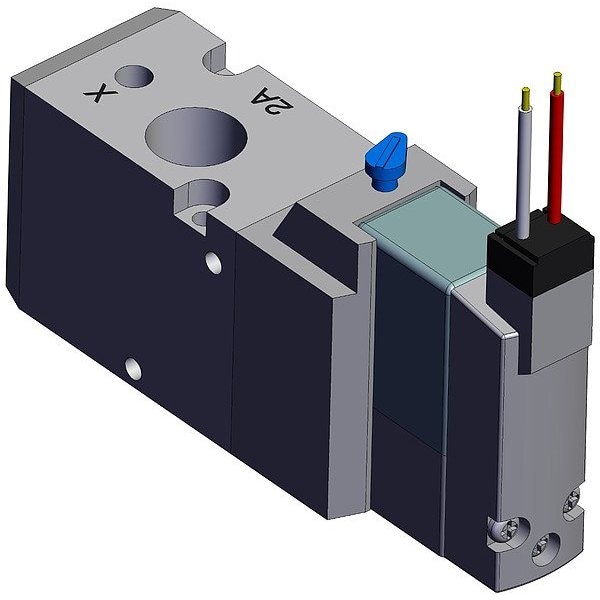

Solenoid Air Control Valve, 94 mm L

  • Mfr # VP342RK-5MZE1-02NA

  • Zoro # G521915514

product price:  $85.25
/ea

Key Features

Operating Temperature - Maximum
50 Degrees C
Coefficient of Volume (Cv)
1
Overall Height
54 mm
Pilot Port Connection Type
NPT
Inlet Port Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342RK-5MZE1-02NA
Zoro #
G521915514
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
54 mm
Wire Rope Length
94 mm
Pilot Port Connection Size
1/4
Exhaust Port Connection Size
1/4
Overall Width
27 mm
Inlet Port Connection Size
1/4
Overall Length
94 mm

Details

Operating Temperature - Maximum
50 Degrees C
Coefficient of Volume (Cv)
1
Pilot Port Connection Type
NPT
Inlet Port Connection Type
NPT
Number of Ways
Three-Way
Body Material
Aluminum
Operating Pressure - Minimum
0.2 MPa
Actuator Type
Single Solenoid
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Gender
Female
Pilot Port Connection Gender
Female
Voltage
24V DC
Product Type
Solenoid Air Control Valve
Number of Ports
3
Power Consumption
0.55 W
Series
VP300
Return Action
Spring Return
Valve Action
Normally Closed
Valve Type
Spool
Body Style
Body-Ported
Pilot Pressure
0.2 MPa
Body Features
Single
Response Time
42 msec
Exhaust Port Connection Gender
Female
Exhaust Port Connection Type
NPT
Seal Material
Rubber
Number of Positions
Two-Position
Operating Pressure - Maximum
0.7 MPa
Item
Solenoid Air Control Valve
Includes Solenoid Coil
Solenoid Coil Included

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Overall Height 54 mm, Overall Length 94 mm, Overall Width 27 mm
