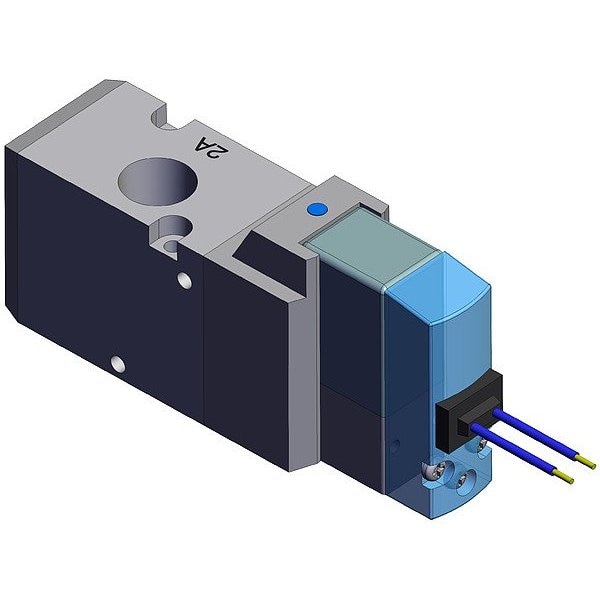

Solenoid Air Control Valve, 97 mm L

  • Mfr # VP342-5G1-02TA

  • Zoro # G621915902

product price:  $72.39
/ea

Key Features

Number of Ways
Three-Way
Overall Width
27 mm
Operating Pressure - Maximum
0.7 MPa
Number of Positions
Two-Position
Inlet Port Connection Size
1/4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342-5G1-02TA
Zoro #
G621915902
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
27 mm
Inlet Port Connection Size
1/4
Wire Rope Length
97 mm
Overall Height
43 mm
Exhaust Port Connection Size
1/4

Details

Number of Ways
Three-Way
Operating Pressure - Maximum
0.7 MPa
Number of Positions
Two-Position
Inlet Port Connection Type
NPTF
Exhaust Port Connection Gender
Female
Body Style
Body-Ported
Item
Solenoid Air Control Valve
Body Material
Aluminum
Pilot Pressure
0.2 MPa
Seal Material
Rubber
Pilot Type
Internal Pilot
Series
VP300
Valve Type
Spool
Valve Action
Normally Closed
Product Type
Solenoid Air Control Valve
Coefficient of Volume (Cv)
1
Pilot Port Connection Gender
Female
Response Time
13 msec
Inlet Port Connection Gender
Female
Power Consumption
0.55 W
Operating Temperature - Maximum
50 Degrees C
Override
Non-Locking
Return Action
Spring Return
Body Features
Single
Actuator Type
Single Solenoid
Operating Temperature - Minimum
-10 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Voltage
24V DC
Operating Pressure - Minimum
0.2 MPa
Number of Ports
3

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 43 mm, Overall Length 97 mm, Overall Width 27 mm
