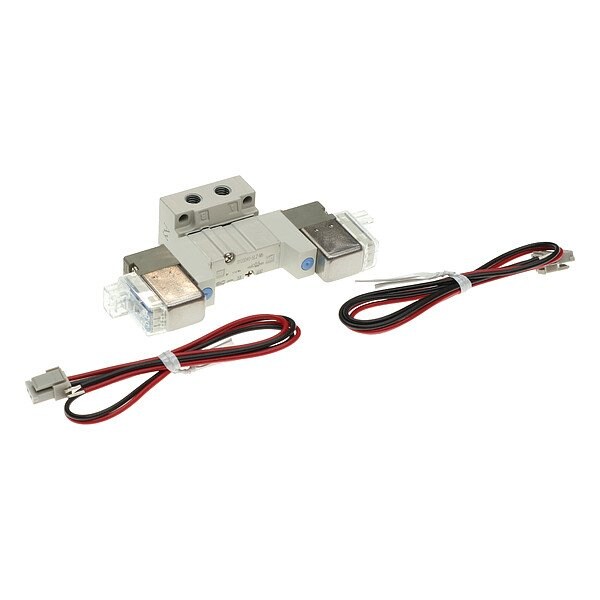

Solenoid Air Control Valve, 98 19/32 mm L

  • Mfr # SYJ3240-5LZ-M5
  • Zoro # G721916120
product price:
$
80.59
/ea

Key Features

Operating Temperature - Maximum
50 Degrees C
Series
SYJ3000
Valve Action
Normally Closed
Lubrication
Lubrication Not Required
Number of Ports
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ3240-5LZ-M5
Zoro #
G721916120
UPC #
-
Country of Origin
Japan
Operating Temperature - Maximum
50 Degrees C
Series
SYJ3000
Valve Action
Normally Closed
Lubrication
Lubrication Not Required
Number of Ports
5
Item
Solenoid Air Control Valve
Number of Ways
Five-Way
Body Material
Die Cast Zinc
Valve Type
Spool
Operating Pressure - Minimum
0.15 MPa
For Media
Air
Body Style
Base-Mounted
Actuator Type
Double Solenoid
Number of Positions
Two-Position
Pilot Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Pilot Type
Internal Pilot
Response Time
15 msec
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Override
Non-Locking
Product Type
Solenoid Air Control Valve
Body Features
Double
Exhaust Port Connection Gender
Female
Pilot Pressure
0.1 MPa
Return Action
Pilot Return
Electrical Connection Type
Plug-In
Power Consumption
0.5 W
Coefficient of Volume (Cv)
0.12
Operating Pressure - Maximum
0.7 MPa
Voltage
24V DC
Seal Material
Rubber
Inlet Port Connection Gender
Female

Dimensions

Exhaust Port Connection Size
M5
Inlet Port Connection Size
M5
Overall Width
11 mm
Pilot Port Connection Size
M5
Wire Rope Length
98 19/32 mm
Overall Height
39 3/32 mm
Overall Length
98 19/32 mm
Length
98 19/32 mm

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.1 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 98 19/32 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
