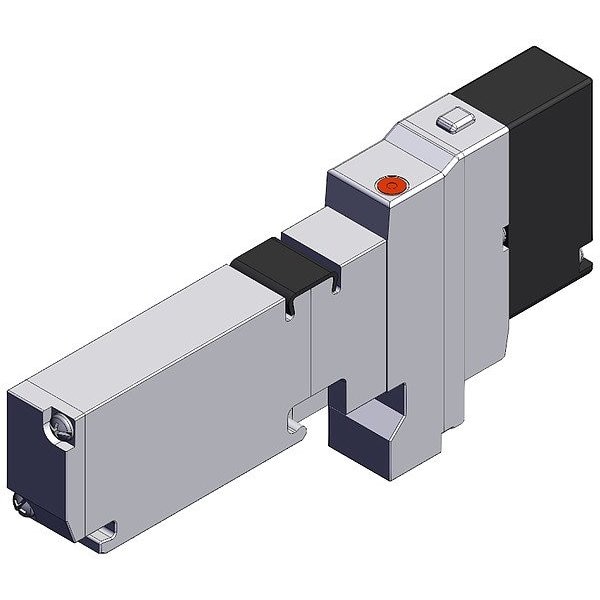

Smc Solenoid Valve, Base-Mounted, VQC1000, 24V DC VQC1101N-51 - main

Solenoid Valve, Base-Mounted, VQC1000, 24V DC

  • Mfr # VQC1101N-51

  • Zoro # G315854814

product price: $63.22
/ea

Key Features

Inlet Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Series
VQC1000
Return Action
Single Solenoid Monostable
Number of Positions
Two-Position
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VQC1101N-51
Zoro #
G315854814
UPC #
-
Country of Origin
Japan

Details

Inlet Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Series
VQC1000
Return Action
Single Solenoid Monostable
Number of Positions
Two-Position
Flow Rate - Maximum
8.57 scfm
ISO Class
13849
Valve Type
Spool
Seal Material
Rubber
Operating Temperature - Minimum
-10 Degrees C
Coefficient of Volume (Cv)
0.25
Body Style
Base-Mounted
Operating Pressure - Maximum
0.7 MPa
Body Features
Single
Pilot Type
Internal Pilot
Number of Ways
Five-Way
Actuator Type
Single Solenoid
Spool Material
Aluminum
Standards
RoHS Compliant
Operating Temperature - Maximum
50 Degrees C
Body Material
Die Cast Zinc
Pilot Port Connection Gender
Female
Operating Pressure - Minimum
0.15 MPa
Product Type
Solenoid Air Control Valve
Exhaust Port Connection Gender
Female
Item
Solenoid Valve
Override
Non-Locking
Voltage
24V DC
Electrical Connection Type
Plug-In
Number of Ports
5
For Media
Air, Inert Gas
Pilot Pressure
0.15 MPa
Lubrication
Lubrication Not Required

Description

Solenoid Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class 13849, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Override Non-Locking, Standards RoHS Compliant

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
