Shop SMC

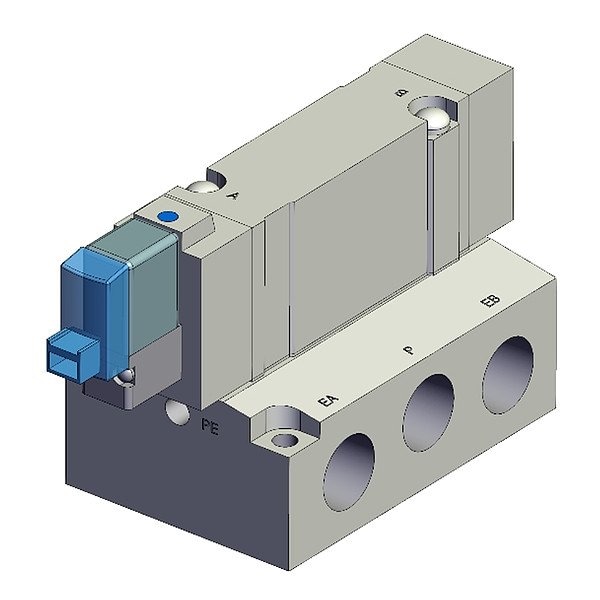

Solenoid Valve

  • Mfr # SY7140-5LOZ-02T

  • Zoro # G515197759

product price:  $76.19
/ea

Key Features

Body Style
Base-Mounted
Series
SY7000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.1 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SY7140-5LOZ-02T
Zoro #
G515197759
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
58 1/2 mm
Overall Length
110 mm
Wire Rope Length
110 mm

Details

Item
Solenoid Valve
Body Style
Base-Mounted
Series
SY7000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.1 W
Override
Non-Locking
Number of Ways
Five-Way
Number of Positions
Two-Position
Standards
RoHS Compliant
Product Type
Solenoid Air Control Valve
Valve Type
Spool
Lubrication
Lubrication Not Required
Electrical Connection Type
Plug-In
Operating Temperature - Minimum
-10 Degrees C
Operating Pressure - Minimum
0.1 MPa
Operating Pressure - Maximum
0.7 MPa
For Media
Air
Seal Material
Rubber
Pilot Type
Internal Pilot
Exhaust Port Connection Type
NPT
Actuator Type
Single Solenoid
Number of Ports
5
Body Features
Single
Inlet Port Connection Type
NPT
Operating Temperature - Maximum
50 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Flow Rate - Maximum
37.72 scfm
Coefficient of Volume (Cv)
1.1
Spool Material
Aluminum
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Return Action
Single Solenoid Monostable
Inlet Port Connection Gender
Female
Body Material
Aluminum

Description

Solenoid Valve
