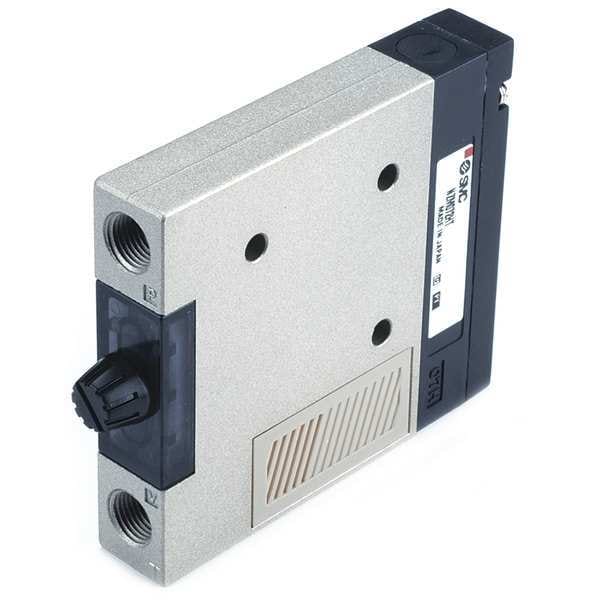

Vacuum Ejector, Single, 1/8 In NPT
Mfr # ZM072HT
Zoro # G4870214
product price:Â
$
60.69
/ea
Key Features
Pressure Port Size
1/8 in
Vacuum Port Size
1/8 in
Exhaust Type
Muffler
Vacuum Flow Rate
24.0 lpm
Weight
170 g
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZM072HT
- Zoro #
- G4870214
- UPC #
- -
- Country of Origin
- Japan
- Exhaust Type
- Muffler
- Vacuum Flow Rate
- 24.0 lpm
- Weight
- 170 g
- Temp. Range
- 5 Degrees to 60 Degrees C
- Item
- Vacuum Ejector
- Includes
- Muffler, Needle Flow Control Valve
- Ejector Type
- 2 Stage Venturi
- Supply Pressure Range
- 35 to 72 PSI
- Vacuum Pressure Range
- 0 to -84 KPA
- Vacuum Pressure @ 40 PSI
- -55 kPa
- Vacuum Pressure @ 75 PSI
- -84 kPa
- Vacuum Port Type
- NPT
- Pressure Port Type
- NPT
- Maximum Operating Temperature
- 60 Degrees C
- Maximum Flow Rate
- 24 lpm
- Maximum Supply Pressure
- 72 psi
Description
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Maximum Flow Rate 24 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 88 mm, Overall Width 15.5 mm, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Size 1/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -55 kPa, Vacuum Pressure @ 75 PSI -84 kPa, Weight 170 g
