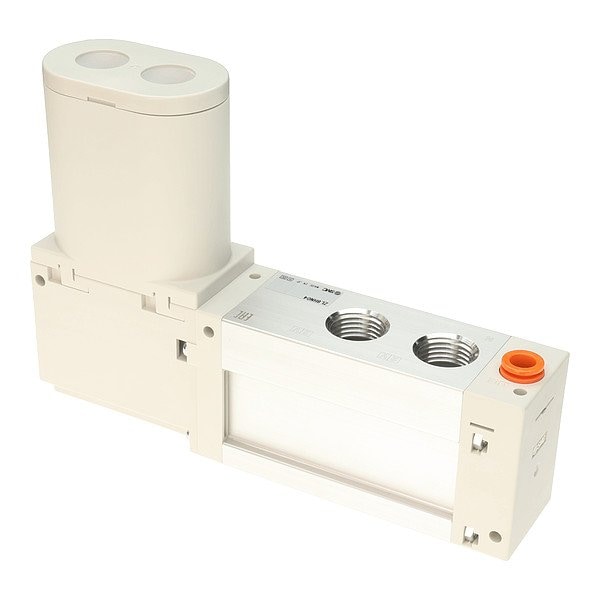

VACUUM GENERATOR, LARGE FLOW
- Mfr # ZL6HN04
- Zoro # G521915156
product price:Â
$
418.99
/ea
Free Shipping & Returns
Key Features
Number of Stages
1
Overall Depth
188 mm
Vacuum Port Type
NPT
Pressure Port Type
NPT
Minimum Vacuum Pressure
0.2 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZL6HN04
- Zoro #
- G521915156
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Depth
- 188 mm
- Vacuum Port Size
- 1/2 in
- Nozzle Diameter
- 1.5 X 2 mm
- Overall Height
- 132 mm
- Overall Width
- 40 mm
- Pressure Port Size
- 5/16 in
Details
- Number of Stages
- 1
- Vacuum Port Type
- NPT
- Pressure Port Type
- NPT
- Minimum Vacuum Pressure
- 0.2 MPa
- Maximum Flow Rate
- 600 lpm
- Maximum Supply Pressure
- 0.6 MPa
- Weight
- 470 lb
- Series
- ZL6
- Air Consumption
- 300 lpm
- Maximum Vacuum Pressure
- 0.6 MPa
- Minimum Operating Temperature
- -5 Degrees C
- Item
- Vacuum Generator
- Minimum Supply Pressure
- 0.45 MPa
- Pressure Port Gender
- Female
- Exhaust Port Type
- Push-to-Connect
- Vacuum Port Gender
- Female
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Operating Temperature
- 50 Degrees C
Description
Item Vacuum Generator, Air Consumption 300 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 600 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.2 MPa, Nozzle Diameter 1.5 X 2 mm
