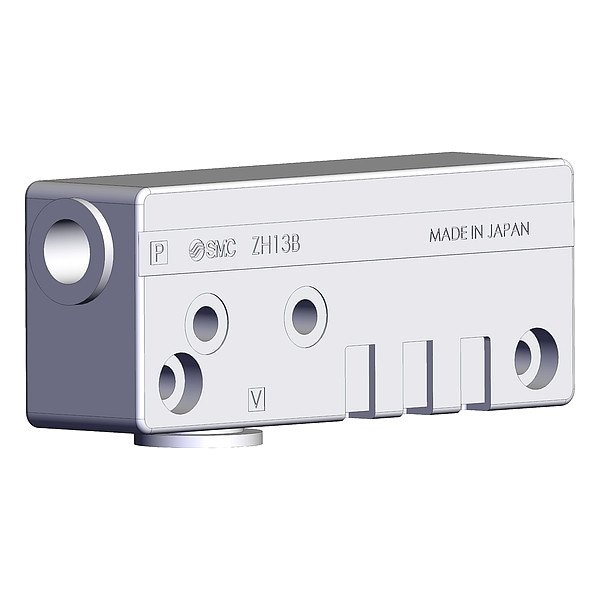

VACUUM GENERATOR
Mfr # ZH13BSA-09-11
Zoro # G221914800
product price:Â
$
32.25
/ea
Key Features
Minimum Supply Pressure
0.45 MPa
Maximum Operating Temperature
50 Degrees C
Weight
26.9 lb
Overall Height
32.4 mm
Minimum Operating Temperature
-5 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH13BSA-09-11
- Zoro #
- G221914800
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 32.4 mm
- Vacuum Port Size
- 3/8 in
- Overall Depth
- 77.4 mm
- Nozzle Diameter
- 1.3
- Overall Width
- 20 mm
- Pressure Port Size
- 5/16 in
Details
- Minimum Supply Pressure
- 0.45 MPa
- Maximum Operating Temperature
- 50 Degrees C
- Weight
- 26.9 lb
- Minimum Operating Temperature
- -5 Degrees C
- Maximum Supply Pressure
- 0.6 MPa
- Air Consumption
- 88 lpm
- Pressure Port Type
- RC
- Maximum Vacuum Pressure
- 0.6 MPa
- Vacuum Port Type
- RC
- Item
- Vacuum Generator
- Series
- ZH
- Maximum Flow Rate
- 40 lpm
- Minimum Vacuum Pressure
- 0.1 MPa
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Number of Stages
- 1
Description
Item Vacuum Generator, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
