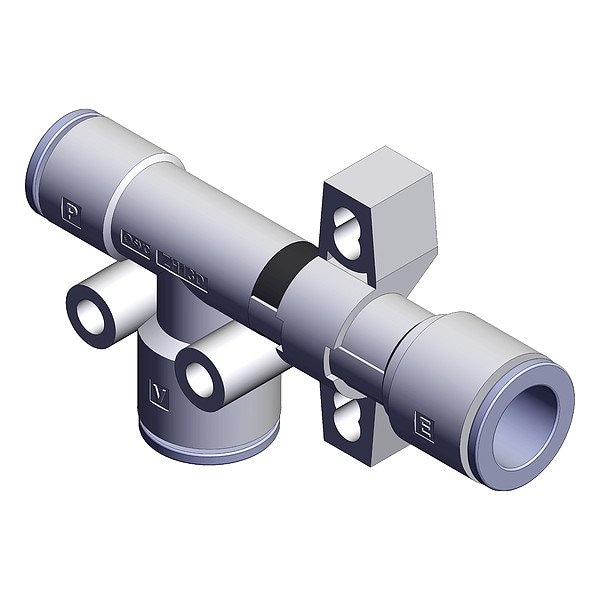

VACUUM GENERATOR
Mfr # ZH13DSA-08-10-10
Zoro # G521915576
product price:Â
$
22.15
/ea
Key Features
Overall Width
20 mm
Exhaust Port Type
Push-to-Connect
Number of Stages
1
Nozzle Diameter
1.3
Minimum Vacuum Pressure
0.1 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZH13DSA-08-10-10
- Zoro #
- G521915576
- UPC #
- -
- Country of Origin
- Japan
- Exhaust Port Type
- Push-to-Connect
- Item
- Vacuum Generator
- Number of Stages
- 1
- Minimum Vacuum Pressure
- 0.1 MPa
- Pressure Port Type
- Push-to-Connect
- Maximum Vacuum Pressure
- 0.6 MPa
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Minimum Supply Pressure
- 0.45 MPa
- Series
- ZH
- Weight
- 0.06 lb
- Maximum Flow Rate
- 40 lpm
- Minimum Operating Temperature
- -5 Degrees C
- Maximum Supply Pressure
- 0.6 MPa
- Air Consumption
- 88 lpm
- Vacuum Port Type
- Push-to-Connect
- Maximum Operating Temperature
- 50 Degrees C
Description
Item Vacuum Generator, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 10 mm, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
