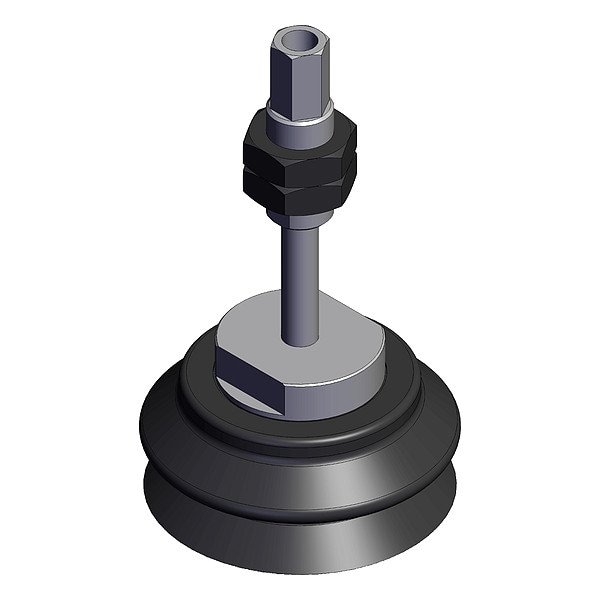

Vacuum Pad, Black, Bellows Pad
Mfr # ZPT80HBNJ25-B01-A18
Zoro # G221914862
product price:Â
$
42.79
/ea
Key Features
Minimum Operating Temperature
0 Degrees C
Weight
0.82 lb
Pad Material
NBR
Pad Type
Bellows
Pad Diameter
80 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZPT80HBNJ25-B01-A18
- Zoro #
- G221914862
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Pad Diameter
- 80 mm
- Overall Height
- 43 mm
- Port Size
- M18 X 1.5
- Pad Height
- 144 mm
Details
- Minimum Operating Temperature
- 0 Degrees C
- Item
- Vacuum Pad
- Weight
- 0.82 lb
- Pad Material
- NBR
- Pad Type
- Bellows
- Durometer
- 50
- Maximum Operating Temperature
- 200 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Series
- ZPT
- Port Type
- Metric
- Pad Color
- Black
Description
Item Vacuum Pad, Durometer 50, Maximum Operating Temperature 200 Degrees C, Minimum Operating Temperature 0 Degrees C, Number of Folds Not Applicable, Overall Height 43 mm, Pad Color Black, Pad Diameter 80 mm, Pad Height 144 mm, Pad Material NBR, Pad Type Bellows, Port Size M18 X 1.5, Port Type Metric, Series ZPT, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Stroke Not Applicable, Weight 0.82 lb
