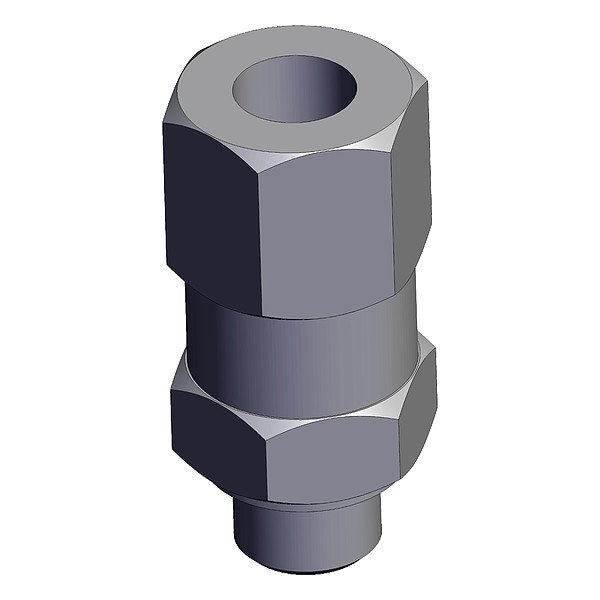

Vacuum Savings Valve, Brass, Series ZP2V
Mfr # ZP2V-A5-05
Zoro # G421915300
product price:Â $17.99
/eaKey Features
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Orifice Size
0.5 mm
Minimum Operating Temperature
5 Degrees C
Hex Size
8 mm
Vacuum Inlet Gender
Female
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZP2V-A5-05
- Zoro #
- G421915300
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Orifice Size
- 0.5 mm
- Hex Size
- 8 mm
- Vacuum Inlet Size
- M5 x 0.8
- Vacuum Pad End Size
- M5 x 0.8
- Wire Rope Length
- 9 mm
- Outside Diameter
- 4/5 in
- Overall Length
- 9 mm
Details
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Minimum Operating Temperature
- 5 Degrees C
- Vacuum Inlet Gender
- Female
- Vacuum Pad End Gender
- Male
- Minimum Flow Rate
- 5 lpm
- Maximum Operating Temperature
- 60 Degrees C
- Vacuum Inlet Type
- Metric
- Vacuum Pad End Type
- Metric
- Item
- Vacuum Savings Valve
- Maximum Vacuum Pressure
- -100 kPa
- Body Material
- Brass
- Weight
- 0.02 lb
- Series
- ZP2V
Description
Vacuum Savings Valve, Minimum Flow Rate 5 lpm, Maximum Vacuum Pressure -100 kPa, Hex Size 8 mm, Overall Length 9 mm, Vacuum Inlet Size M5 x 0.8, Vacuum Inlet Type Metric, Vacuum Inlet Gender Female, Vacuum Pad End Size M5 x 0.8, Vacuum Pad End Type Metric, Vacuum Pad End Gender Male, Orifice Size 0.5 mm, Series ZP2V, Body Material Brass, Maximum Operating Temperature 60 Degrees C, Minimum Operating Temperature 5 Degrees C, Outside Diameter 4/5 in
