  11. Filter-Regulator, Particles/Water Removal, Overall Width: 2.87 in
Shop All Filters & Regulators
Wilkerson

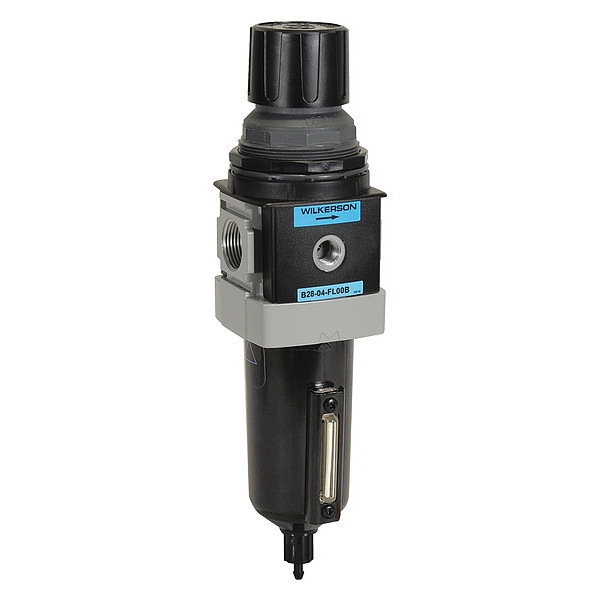

Filter-Regulator, Particles/Water Removal, Overall Width: 2.87 in

product price: $109.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/2 in NPT
  • Filter Rating - Air Treatment 5 micron
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 260 cfm
  • Adjustment Range - Air Treatment 0 to 125 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/2 in NPT
Size - Air Treatment Standard
Bowl Size - Air Treatment 3.0 oz
Gauge Port Size 1/4 in
Overall Height 11 1/4 in
Overall Width 2 7/8 in
Pressure Gauge Port Size 1/4 in
Overall Depth 2 1/4 in
Air Outlet Size 1/2 in
Air Inlet Size 1/2 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 5 micron
Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 260 cfm
Adjustment Range - Air Treatment 0 to 125 psi
Bowl Material - Air Treatment Metal with Sight Gauge
For Removal Of Particles, Water
Max. Temp. 150 Degrees F
Item Filter-Regulator
Includes Panel Nut
Drain Type Manual
Filter Rating 5 micron
Standards ISO 8573-1: 1991 Class 3, ISO 8573-1: 2001 Class 6, ISO Class 3
Weight 1.87 lb
Maximum Operating Pressure 250 psi
Regulator Type Relieving
Pressure Drop 14.5 psi
Adjustment Mechanism Material Acetal
Number of Air Outlets 1
Filter Bowl Material Metal
Adjustment Mechanism Knob
Seal Material Nitrile
Sight Gauge Included Yes
Filter Bowl Capacity 2.87 oz
Minimum Regulated Pressure 0 psi
Number of Air Inlets 1
Maximum Flow Rate 200 cfm
Differential Pressure Indicator Included Yes
Filter Element Material Polyethylene
Filter Type Particulate
For Substance Type Particles, Water
Air Outlet Type NPT
Maximum Operating Temperature 150 Degrees F
Drain Included Yes
Drain Part Compatibility GRP-96-644
Pressure Gauge Included No
Maximum Regulated Pressure 125 psi
Air Inlet Type NPT
Series B28
System Location Air Line
Body Material Aluminum
For Fluid Type Particles, Water
Minimum Operating Temperature -13 Degrees F
ISO Class 6

Description

Filter-Regulator, Filter Bowl Material Metal, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 200 cfm, Filter Rating 5 micron, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 2 7/8 in, Series B28, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/2 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes
