Smith Bearing

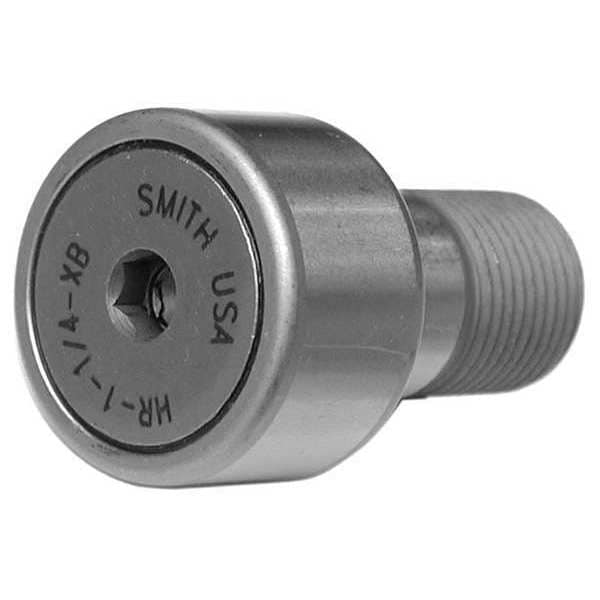

Cam Follower, Heavy Stud, Hex Socket Head

product price: $19.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Style Heavy Stud
  • Roller Shape Flat
  • Face Design Hex Socket
  • Roller Dia. 0.5 in
  • Roller Width 3/8 in
See all product information

Product Information

Dimensions

Roller Dia. 0.5 in
Roller Width 3/8 in
Stud Dia. 0.25 in
Stud Length 5/8 in
Thread Size 1/4-28
Thread Length (In.) 0.25 in
Roller Dia. (In.) 0.5000
Stud Dia. (In.) 0.2500
Roller Width (In.) 0.3750
Stud Length (In.) 0.625
Roller Diameter 1/2 in
Overall Length 1 1/32 in
Hex Drive Size 1/8 in
Stud Thread Length 1/4 in
Stud Diameter 1/4 in
Stud Thread Size 1/4"-28

Details

Roller Style Heavy Stud
Roller Shape Flat
Face Design Hex Socket
Stud Type Concentric
Item Cam Follower
Number of Bearings 1
Dynamic Load Capacity (Lb.) 970 lb
Bearing Type Needle Roller
Roller Material Alloy Steel
Static Load Capacity (Lb.) 1,590 lb
Type Heavy Stud
Bearing Material Alloy Steel
Roller Type Hex Socket Head
Stud Material Carbon Steel
Agency Compliance ABMA
Rolling Element Rows 1
Maximum Temperature 250 Degrees F
Static Radial Load Capacity 1,590 lbf
Drive Location Stud
Minimum Temperature -30 Degrees F
Bearing Material Grade AISI 52100
Standards ABMA
Roller Material Grade 52100
System of Measurement Inch
Drive Type Hex Socket
Closure Double Sealed
Seal Material Molded Acetyl
Features Rollers and Outer Races are Identical to the Standard CR Series, The Hex Head Heavy Stud Series have a Larger Diameter Stud and are Recommended for Applications with High Running Loads and/or Heavy Shocks Where Deflection Should be Held to a Minimum
Load Direction Radial
Seal Type Contact
Duty Type Heavy
Dynamic Radial Load Capacity 970 lbf
Roller Head Type Flat

Description

Cam Follower, Closure Double Sealed, Drive Type Hex Socket, Duty Type Heavy, Face Design Hex Socket, Overall Length 1 1/32 in, Roller Diameter 1/2 in, Roller Head Type Flat, Roller Material Alloy Steel, Roller Width 3/8 in, Rolling Element Rows 1, Seal Type Contact, Stud Material Carbon Steel, Stud Thread Size 1/4 In.-28, Stud Type Concentric, System of Measurement Inch, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100, Bearing Type Needle Roller, Drive Location Stud
