  11. Cam Follower, Stud, 29899 lb., Double Row

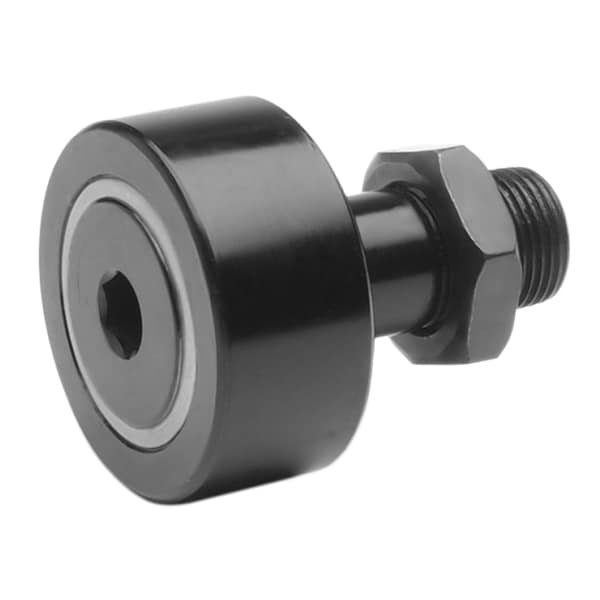

Smith Bearing Cam Follower, Stud, 29899 lb., Double Row NUKR-80-E - main

Cam Follower, Stud, 29899 lb., Double Row

  • Mfr # NUKR-80-E

  • Zoro # G0507361

product price: $313.99
/ea
Free Shipping & Returns

Key Features

Roller Style
Heavy Stud
Roller Shape
Flat
Face Design
Screwdriver Slot
Roller Dia.
80 mm
Roller Width
35 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NUKR-80-E
Zoro #
G0507361
UPC #
651041227552
Country of Origin
Multiple

Dimensions

Roller Dia.
80 mm
Roller Width
35 mm
Stud Dia.
1.1811 in
Stud Length
63 mm
Roller Dia. (In.)
3.1496
Stud Dia. (In.)
1.1811
Roller Dia. (mm)
80.00
Stud Length (In.)
2.480
Roller Width (mm)
35.00
Roller Width (In.)
1.3780
Overall Length
100 mm
Stud Diameter
30 mm
Stud Thread Size
M30-1.5
Roller Diameter
80 mm
Stud Thread Length
32 mm

Details

Roller Style
Heavy Stud
Roller Shape
Flat
Face Design
Screwdriver Slot
Stud Type
Eccentric
Number of Bearings
1
Item
Cam Follower
Static Load Capacity (Lb.)
21,356 lb
Type
Stud
Roller Material
Alloy Steel
Dynamic Load Capacity (Lb.)
29,899 lb
Bearing Type
Needle Roller
Stud Material
Carbon Steel
Bearing Material
Alloy Steel
Features
Made with a Double Row of Heavy Rollers for Extremely High Load Applications. These Heavy Duty Bearings are Assembled with Metallic Side Shields Helping to Retain Grease and Keep Out Containments.
Standards
ABMA
Minimum Temperature
-30 Degrees F
Bearing Material Grade
AISI 52100
Dynamic Radial Load Capacity
95,000 lbf
Maximum Temperature
250 Degrees F
Duty Type
Heavy
Static Radial Load Capacity
133,000 lbf
Maximum Speed
1,800 RPM Grease
Closure
Double Shielded
Roller Material Grade
52100
System of Measurement
Metric
Drive Location
Stud
Rolling Element Rows
2
Drive Type
Slotted
Load Direction
Radial
Roller Head Type
Crowned

Description

Cam Follower, Closure Double Shielded, Drive Type Slotted, Duty Type Heavy, Face Design Screwdriver Slot, Overall Length 100 mm, Roller Diameter 80 mm, Roller Head Type Crowned, Roller Material Alloy Steel, Roller Width 35 mm, Rolling Element Rows 2, Seal Type Not Applicable, Stud Material Carbon Steel, Stud Thread Size M30-1.5, Stud Type Eccentric, System of Measurement Metric, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100, Bearing Type Needle Roller, Drive Location Stud
