Smith Bearing

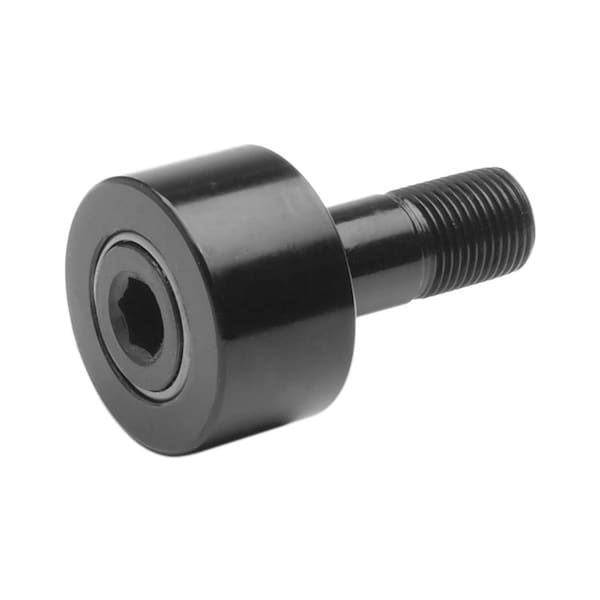

Cam Follower, Stud, 8400lb., Double Row

product price: $46.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Style Heavy Stud
  • Roller Shape Flat
  • Face Design Hex Socket
  • Roller Dia. 1.75 in
  • Roller Width 1 in
See all product information

Product Information

Dimensions

Roller Dia. 1.75 in
Roller Width 1 in
Stud Dia. 0.625 in
Stud Length 1 3/4 in
Roller Width (mm) 25.4
Roller Dia. (In.) 1.7500
Roller Dia. (mm) 44.45
Roller Width (In.) 1.0000
Stud Dia. (In.) 0.6250
Stud Length (In.) 1.750
Overall Length 2 25/32 in
Roller Diameter 1 3/4 in
Stud Thread Length 7/8 in
Stud Thread Size 3/4"-16
Hex Drive Size 3/8 in
Stud Diameter 3/4 in

Details

Roller Style Heavy Stud
Roller Shape Flat
Face Design Hex Socket
Stud Type Concentric
Number of Bearings 1
Item Cam Follower
Static Load Capacity (Lb.) 10,800 lb
Dynamic Load Capacity (Lb.) 8,400 lb
Type Stud
Roller Material Alloy Steel
Bearing Type Needle Roller
Bearing Material Alloy Steel
Stud Material Carbon Steel
Features Designed with a Double Row of Heavy Duty Rollers, Thicker Outer Rings and Special Full-Contact Seals
Standards ABMA
Bearing Material Grade AISI 52100
Closure Double Sealed
Static Radial Load Capacity 10,800 lbf
Minimum Temperature -30 Degrees F
Load Direction Radial
Roller Material Grade 52100
Seal Type Contact
Drive Location Stud
System of Measurement Inch
Dynamic Radial Load Capacity 8,400 lbf
Seal Material Molded Acetyl
Rolling Element Rows 2
Drive Type Hex Socket
Roller Head Type Flat
Maximum Temperature 250 Degrees F
Duty Type Heavy

Description

Cam Follower, Closure Double Sealed, Drive Type Hex Socket, Duty Type Heavy, Face Design Hex Socket, Overall Length 2 25/32 in, Roller Diameter 1 3/4 in, Roller Head Type Flat, Roller Material Alloy Steel, Roller Width 1 in, Rolling Element Rows 2, Seal Type Contact, Stud Material Carbon Steel, Stud Thread Size 3/4 In.-16, Stud Type Concentric, System of Measurement Inch, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100, Bearing Type Needle Roller, Drive Location Stud
