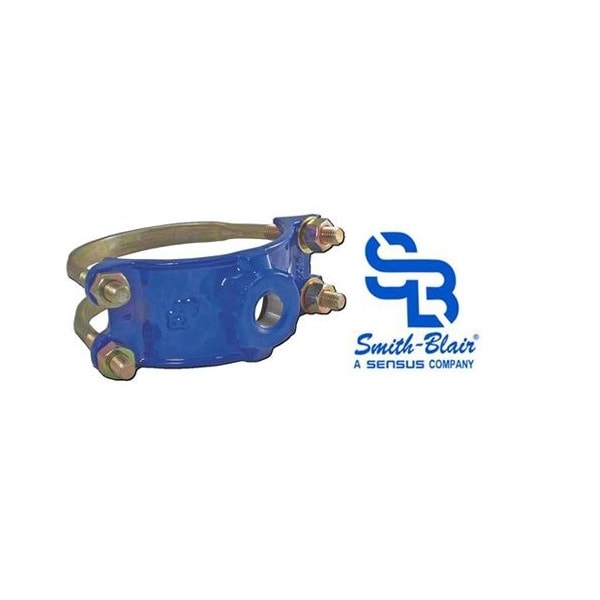

DI Body, Dual Bale, Epoxy Coated, Service Saddle
Mfr # 313-00101016-000
Zoro # G110952425
product price: $188.99
/ea
Free Shipping & Returns
Key Features
Material
Ductile Iron
Insulation OD
8.54-10.10 in.
Standards and Approvals
NSF ANSI 61
Pipe Size
2-1/2 in.
Finish
12 Mil Epoxy Coating
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-00101016-000
Zoro #
G110952425
UPC #
-
Country of Origin
United States
Dimensions
Pipe Size
2-1/2 in.
Details
Item
Dual Bale Hot Tap Service Saddle
Material
Ductile Iron
Insulation OD
8.54-10.10 in.
Standards and Approvals
NSF ANSI 61
Finish
12 Mil Epoxy Coating
Description
Smith-Blair offers the most complete line of Hot Tap service saddles in the industry for fast, dependable tapping of all types of pipes. The 313 Series offers outstanding features that include the Taper Seal gasket, 12 mil Epoxy Coat, and heavy forged carbon steel electro-galvanized bales. Their wrap-around design reinforces and supports the pipe, are combined in superior service saddles to provide low initial cost, ease of installation, and excellent lasting qualities.
- Works with Steel, Di, CI and ACP pipe
- Bodies: Ductile Iron with 12 Mil Epoxy Coat
- Bales: Carbon Steel Electro-galvanized
- Nuts: Cold Formed Heavy Hex Steel Electro-galvanized
- Washers: Carbon Steel Electro-galvanized
- Gasket: Niltrile Buna-N
- Temperature Rating: -20 to +180 Deg F
- Pressure Rating: Up to 300 psi*
- Certified to: NSF ANSI 61
- Pressure depends on size, type and condition of the pipe and quality of the installation. Fabricated straps, epoxy coated steel
