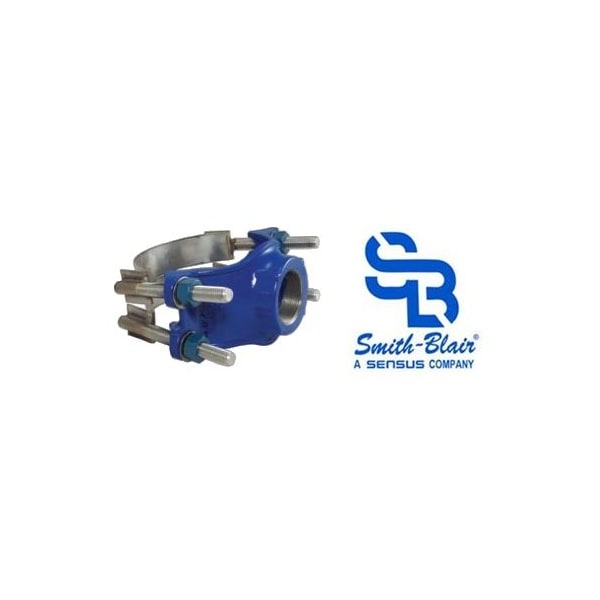

DI Body, Dual Wide SS Straps, Epoxy Coated Service Saddle

Smith-Blair offers the most complete line of Hot Tap service saddles in the industry for fast, dependable tapping of all types of pipes. The 317 Series offers outstanding features that include the Taper Seal gasket, 12 mil Epoxy Coat, and Dual Wide S/S Straps. Their wrap-around design reinforces and supports the pipe, are combined in superior service saddles to provide low initial cost, ease of installation, and excellent lasting qualities.

• Works with Steel, PVC, DI, CI and ACP pipe
• Bodies: Ductile Iron with 12 Mil Epoxy Coat
• Bales: Dual Wide 304 Staliness Setel
• Nuts: 304 Stainless Steel
• Washers: 304 Stainless Steel
• Gasket: Niltrile Buna-N
• Temperature Rating: -20 to +180 Deg F
• Pressure Rating: Up to 300 psi*
• Certified to: NSF ANSI 61
• Pressure depends on size, type and condition of the pipe and quality of the installation. Fabricated straps, epoxy coated steel
