  11. Repair Clamp, Pipe Size 4 In, 15 In L
Shop All Pipe Repair Clamps
Smith-Blair

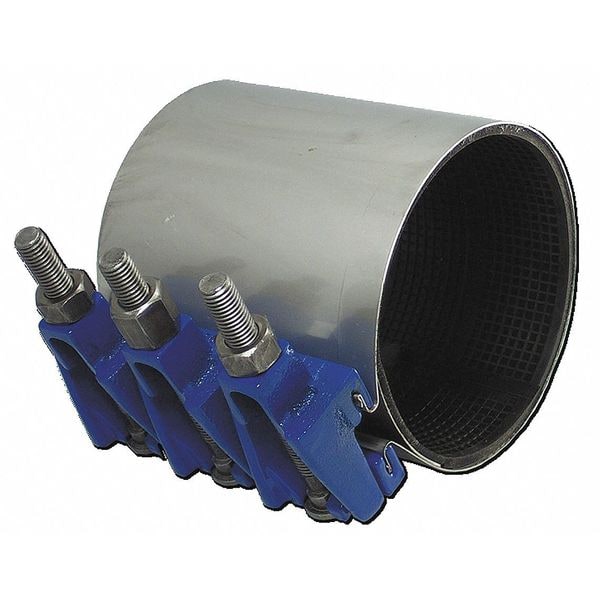

Repair Clamp, Pipe Size 4 In, 15 In L

original price: $332.99
15% off
new price: $282.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Full Circle
  • Gasket Material Nitrile Rubber
  • Pipe Size 4 in
  • Length 15 in
  • Material Stainless Steel
See all product information

Product Information

Dimensions

Pipe Size 4 in
Length 15 in
Fits Outside Dia. 4.45 in to 4.73 in
Bolt Size 5/8 in x 6 in
For Pipe Size 4 in
Overall Length 15 in
For Minimum Outside Diameter 4 7/16 in
For Minimum Copper Tube Size 1/2 in
Bolt Diameter 5/8 in
For Maximum Copper Tube Size 4 in
For Maximum Outside Diameter 4 3/4 in
Bolt Length 6 in

Details

Item Repair Clamp
Type Full Circle
Gasket Material Nitrile Rubber
Material Stainless Steel
Standards NSF 61
Number of Bolts 6
Temp. Range -20F to 180F
Bolt Material Steel
Max. Pressure (PSI) 225
Outlet Connection No
Clamp Material 304 Stainless Steel
Minimum Operating Temperature -20 Degrees F
Lug Material Iron
Maximum Operating Pressure 150 psi
Maximum Vacuum Pressure 10 psi
Features 360 Degrees Gasket Seal, Drop-In Bolts for Installation, Flexi-Coat Epoxy Finish for Corrosion Resistance, May be used to Join Plain End Pipe of the Same Diameter, Range up to 0.40 in Single Band, Removable Lugs Allow Installation in Tight Spaces, Standard Widths Through 30 in
Clamp Material Grade 304
Gasket Coverage Full Coverage
Maximum Operating Temperature 180 Degrees F

Description

Repair Clamp, Bolt Material Steel, Clamp Material Stainless Steel, Clamp Material Grade 304, For Maximum Copper Tube Size 4 in, For Maximum Outside Diameter 4 3/4 in, For Minimum Copper Tube Size 1/2 in, For Minimum Outside Diameter 4 7/16 in, For Pipe Size 4 in, Gasket Coverage Full Coverage, Gasket Material Nitrile Rubber, Maximum Operating Pressure 150 psi, Maximum Vacuum Pressure 10 psi, Number of Bolts 6, Outlet Connection Type Not Applicable, Overall Length 15 in
