Snap-Tite

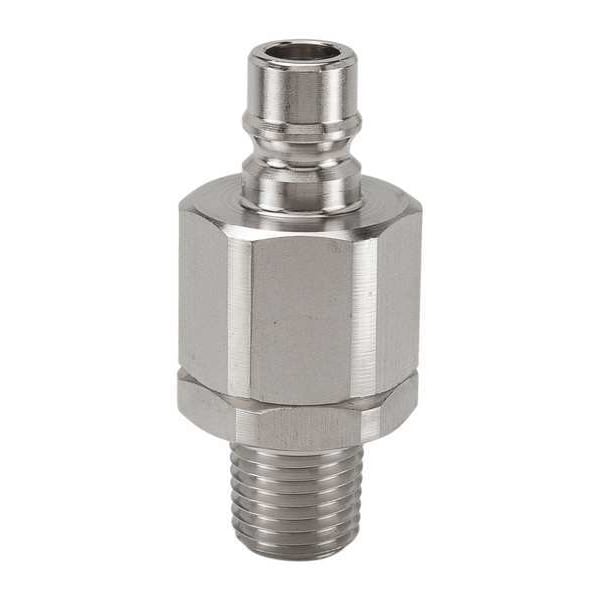

Hydraulic Quick Connect Hose Coupling, 316 Stainless Steel Body, Ball Lock, 1/4"-18 Thread Size

product price: $78.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Quick Coupler Type Hydraulic Coupler Nipple
  • Coupler Interchange Type H
  • Connection Type NPT
  • Coupler Thread Size 1/4"-18
  • Coupler Body Size 1/4"
See all product information

Product Information

Dimensions

Coupler Thread Size 1/4"-18
Coupler Body Size 1/4"
Thread Size 1/4"-18
Length 2-1/32"
Overall Length 2 1/32 in
Max. Outside Dia. 1 1/64 in
Coupling Size 1/4 in

Details

Quick Coupler Type Hydraulic Coupler Nipple
Item Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type H
Connection Type NPT
Coupler Flow Rate 3.8 gpm
Max. Pressure 5000 psi
Coupler Body Material 316 Stainless Steel
Sleeve Material 316 Stainless Steel
Coupler Finish Plain
Series H
Body Material 316 Stainless Steel
Coupling Locking Type Ball
Locking Mechanism Ball
Includes Barbed, Dry Disconnect, Push-to-Connect, Threaded
Valve Design Poppet
Coupler Connection Type MNPT
For Use With Rubber Hose
Operating Temp. Range -40 Degrees to 200 Degrees F
Shut Off Yes
Seal Material Nitrile
Parker Interchange SVHN4-4M
Max. Working Pressure @ 70 F 5,000 psi
Max. Flow Rate 14.38 lpm
Includes Bearing No
Fitting Type MNPT
Includes Valve Yes
Valve Type Poppet
Coupling Component Plug
Finish/Coating Plain
Includes Shut Off Yes
Hose Fitting Gender Male

Description

Hydraulic Quick Connect Hose Coupling, Plug, H Series, 316 Stainless Steel, Coupling Size 1/4 in, Male, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 14.38 lpm
