Snyder Industries

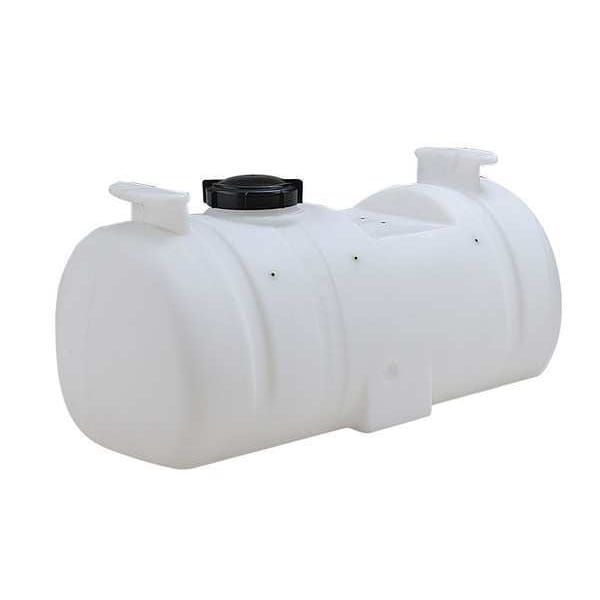

Storage Tank, Horizontal, Closed Top, 25Gal

product price: $386.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tank (Gal.) 25 gal
  • Tank Style Saddle Tank
  • Dia. (In.) 18 in
  • Construction Material HDPE
  • Overall Height 16 in
See all product information

Product Information

Dimensions

Dia. (In.) 18 in
Overall Height 16 in
Height (In.) 16 in
Overall Width 36 in
Overall Depth 17 1/2 in
Manufacturers Warranty Length 3 yr
Length (In.) 36 in
Fill Opening Dia. (In.) 6 in
Overall Diameter 18 in
Fill Cap Diameter 6 in
Fill Opening Diameter 6 in

Details

Item Storage Tank
Tank (Gal.) 25 gal
Tank Style Saddle Tank
Construction Material HDPE
Color Natural; Translucent
Shape Rectangular
Wall Thickness (In.) 1/4 in
Max. Temp. (F) 130 Degrees F
Max. Working Pressure (PSI) Atmospheric
Graduations (Gal.) 1 gal
Graduations (L.) 4 L
Features Molded-in Gallon/Liter Indicators
Agency Compliance NSF And FDA
Type Closed Top
Tank (L) 95 L
Standards ASTM D1998, FDA Compliant 177.1520, NSF/ANSI 61
Tank Material HDPE
Tank Wall Style Single Wall
Graduation Mark Increments 1 gal
Tank Material Thickness 1/4 in
Resistant To Chemicals
Tank Orientation Horizontal
Maximum Liquid Temperature 130 Degrees F
Tank Opening Type Closed Top
Maximum Operating Temperature 130 Degrees F
Liquid Storage Capacity 25 gal

Description

Storage Tank, Drain Connection Gender Not Applicable, Drain Connection Type Not Applicable, Drain Opening Diameter Not Applicable, Fill Opening Diameter 6 in, Frame Material Not Applicable, Graduation Mark Increments 1 gal, Liquid Storage Capacity 25 gal, Overall Depth 17 1/2 in, Overall Diameter 18 in, Overall Height 16 in, Overall Width 36 in, Standards ASTM D1998, FDA Compliant 177.1520, NSF/ANSI 61, Tank Material HDPE, Tank Material Thickness 1/4 in, Tank Opening Type Closed Top
