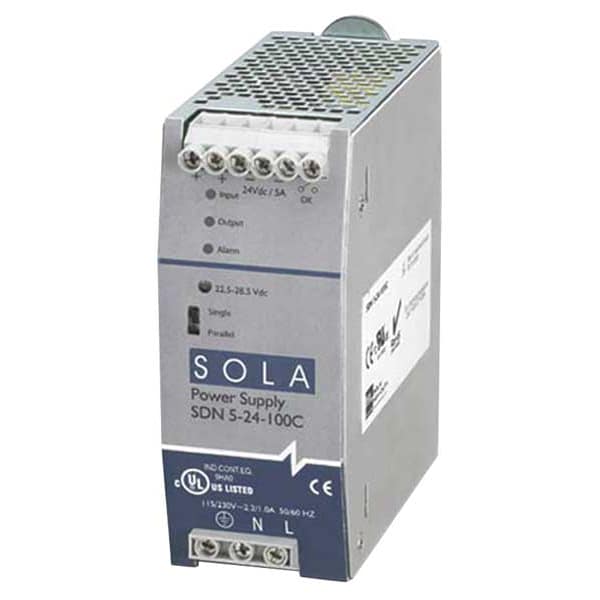

Solahd DC Power Supply, 85/264V AC, 24V DC, 120 W, 5 A, DIN Rail SDN524100C - main

DC Power Supply, 85/264V AC, 24V DC, 120 W, 5 A, DIN Rail

  • Mfr # SDN524100C

  • Zoro # G3201895

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDN524100C
Zoro #
G3201895
UPC #
783472001941
Country of Origin
Philippines

Dimensions

Overall Height
1.97 in
Overall Width
4.85 in
Overall Depth
4.36 in
Width
1.97 in
Depth
4.36 in
Height
4.85 in
Wire Size - Maximum
10 AWG
Wire Size - Minimum
16 AWG

Details

Item
DC Power Supply
Input Voltage
85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Standards
ATEX Directive Ex II 3 G, Ex ec nC IIC Gc, Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC, IECEx Certified Ex ec nC IIC Gc, UL Class I, Division 2, Groups A, B, C, D
Hold Up Time
Greater Than 20 msec
Phase - Electrical
Single
Style
Switching
Series
SDN-C
Output Noise
Less Than 50mV
Features
Compact Packaging To Save Space On The DIN Rail, High MTBF Means High Reliability and Long Life, Higher Efficiency Saves Energy and Lowers Amount Of Heat Generated In Panel, Parallel Capability Standard, Power Factor Correction, Powerboost Overload Capability To Start High Inrush Loads, User Adjustable Output Voltage Accessible Via Front Face
Output Amps
5A
Hz
60 Hz
Output Voltage
24V DC
Power Rating
120W
Case Material
Metal Case
Status Indicator
LED
Peak Amps
5.5
Operating Temp. Range
-25 to 60°C
IP Rating
IP20
Output Power
120-960 W
UL Recognized Component, Haz. Loc.
Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC
Overload Capability
> 30.5 but < 33 Vdc, auto recovery
Current - Inrush
7.4 A
Manufacturer Warranty
5 yr Limited
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Current - Peak
5.5 A
Wire Connection Type
Screw Terminals
Mean Time Between Failures (MTBF)
1,800,000 hr
Special Features
Parallel Capability, Power Boost Function

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 120W, Output Amps 5, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.85 in, Width 1.97 in, Depth 4.36 in, Series SDN-C, Hz 60 Hz, Phase - Electrical Single, Peak Amps 5.5, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 20 msec, Status Indicator LED
