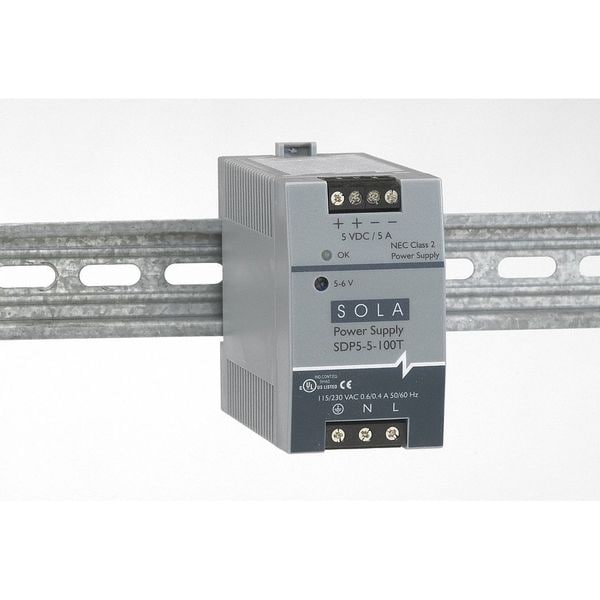

DC Power Supply, 85/264V AC, 5/6V DC, 25 W, 5 A, DIN Rail

  • Mfr # SDP55100T
  • Zoro # G0928121
CAD Available
product price:
$
167.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage
85V AC to 264V AC
Output Voltage - Nominal
5V DC, 6V DC
Output Power - Rated
25 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SDP55100T
Zoro #
G0928121
UPC #
783472151646
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
2.95 in
Overall Width
1.77 in
Overall Depth
3.58 in
Depth
3.58 in
Width
1.77 in
Height
2.95 in
Wire Size - Maximum
12 AWG
Wire Size - Minimum
20 AWG

Details

CAD Available
Yes
Item
DC Power Supply
Input Voltage
85V AC to 264V AC
Output Voltage - Nominal
5V DC, 6V DC
Output Power - Rated
25 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
IP Rating
IP20
Case Material
Plastic Case
Style
Switching
Output Amps
5A
Output Noise
Less Than 50mV
Series
SDP
Output Voltage
5/6V DC
Operating Temp. Range
-10 Degrees to 60 Degrees C
Standards
CE, cRUus, CSA
Status Indicator
Green LED
Phase - Electrical
Single
Features
Adjustable Output, Low Output Noise, No Tools Required For Mounting, Overvoltagea And Short Circuit Protection, Powerboost(TM) Industrial Overload Design, Screw Terminal Connections, Ultra Slim 15W Footprint
Hold Up Time
Greater Than 25 msec
Power Rating
100W
Hz
47 to 63 Hz
Output Power
25-100 W
Overload Capacity
SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery
UL Recognized Component, Haz. Loc.
Class I, Division 2, Groups A, B, C, D
Operating Temperature - Minimum
14 Degrees F
Wire Connection Type
Screw Terminals
Special Features
Adjustable Output Voltage, Short Circuit Protection, Overvoltage Protection, Power Boost Function
Manufacturer Warranty
3 yr Limited
Mean Time Between Failures (MTBF)
500,000 hr
NEMA Enclosure Rating
1
Operating Temperature - Maximum
158 Degrees F
Input Frequency - Maximuim
63 Hz
Output Voltage - Maximum
6 V DC
Output Voltage - Minimum
5 V DC
Output Noise - Maximum
50 mV
Hold Up Time - Minimum
25 msec
Input Frequency - Minimum
47 Hz

Description

DC Power Supply, Input Voltage 85 to 264V AC, Output Voltage 5 to 6V DC, Power Rating 100W, Output Amps 5, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 2.95 in, Width 1.77 in, Depth 3.58 in, Series SDP, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 25 msec, Status Indicator Green LED, NEMA Rating 1
