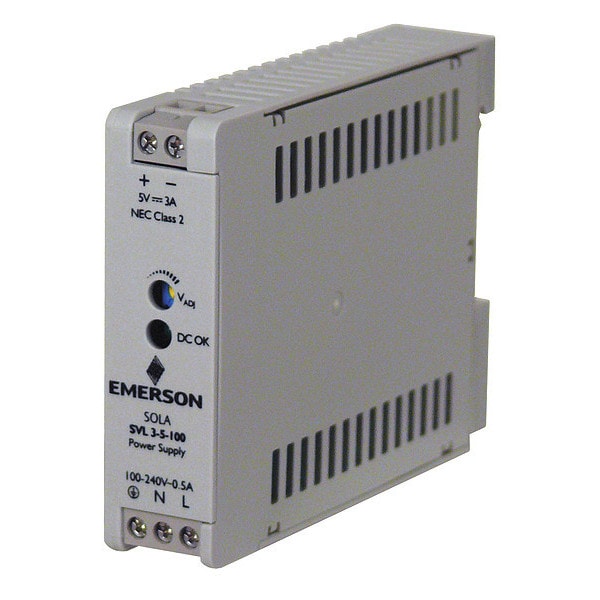

Solahd Din Rail Power Supply, 3 A, 15 W SVL35100 - main

Din Rail Power Supply, 3 A, 15 W

  • Mfr # SVL35100

  • Zoro # G002745289

product price: $61.84
/ea

Key Features

Operating Temp. Range
-20 Degrees to 70 Degrees C
Standards
CE, cRUus, cULus
Power Rating
15W
Features
Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection
Height
2.95 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVL35100
Zoro #
G002745289
UPC #
-
Country of Origin
India

Dimensions

Height
2.95 in
Width
0.82 in
Depth
3.52 in
Overall Height
2.95 in
Overall Depth
3.52 in
Overall Width
0.82 in

Details

Item
DC Power Supply
Operating Temp. Range
-20 Degrees to 70 Degrees C
Standards
CE, cRUus, cULus
Power Rating
15W
Features
Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection
Hold Up Time
100 msec, 20 msec
Output Amps
3
Phase - Electrical
Single
Input Voltage
100 to 240V AC
Hz
50 Hz to 60 Hz
Peak Amps
35 A at 115 V AC, 65 A at 230 V AC
Mounting
DIN Rail
Status Indicator
Green LED (OK)
Output Voltage
5V DC
Style
Switching
Case Material
Metal Case
Series
SVL
Housing Material
Plastic
Operating Temperature - Maximum
158 Degrees F
Power Supply Style
Switching
Output Voltage - Minimum
5 V DC
Input Frequency - Nominal
50/60 Hz
Current - Output
3 A
Mean Time Between Failures (MTBF)
350,000 hr
Phase
Single
Start Up Time - Maximum
3,000 msec
IP Rating
IP20
Operating Temperature - Minimum
-4 Degrees F
Output Power - Rated
15 W
Special Features
Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection
Output Noise - Maximum
75 mV
Output Voltage - Nominal
5 V DC
Manufacturer Warranty
2 yr Limited

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 5V DC, Power Rating 15W, Output Amps 3, Mounting DIN Rail, Switching, Case Material Metal Case, Height 2.95 in, Width 0.82 in, Depth 3.52 in, Series SVL, Hz 50 Hz to 60 Hz, Phase - Electrical Single, Peak Amps 35 A at 115 V AC, 65 A at 230 V AC, IP Rating IP20, Hold Up Time 100 msec, 20 msec, Status Indicator Green LED (OK)
