Shop SOLAHD

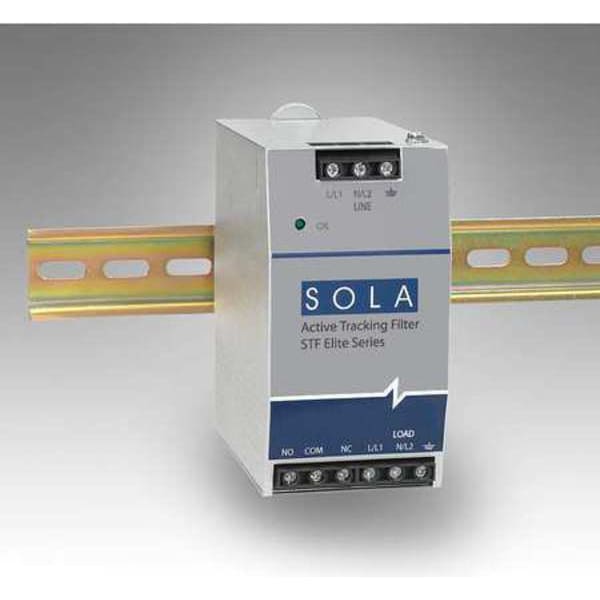

Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires

  • Mfr # STFE20010N

  • Zoro # G4407645

product price:  $813.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Phase
1
Voltage
120V
Number of Poles
1
Number of Wires
2 Wires
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
STFE20010N
Zoro #
G4407645
UPC #
783472029136
Country of Origin
Mexico

Dimensions

Length
4.88 in
Depth
4.56 in
Width
2.56 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Phase
1
Voltage
120V
Number of Poles
1
Voltage Protection Rating
400V (L-N), 500V (L-G, N-G)
Number of Wires
2 Wires
Modes of Protection
L-G, L-N, N-G
Max. Surge Current Per Mode
20kA (L-N), 10kA (L-G, N-G)
Max. Surge Current per Mode
30 kA
Max. Surge Current per Phase
30 kA
Nominal Discharge Current
20 A
Short Circuit Current Rating
5kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150V AC
IP Rating
IP20
Enclosure Material
Metal
Wire Gauge
12 AWG
Includes
LED Status Indicator
Standards
CE, cULus Listed, RoHS, Type 4, UL Listed
Modular / Nonmodular
Modular
Noise Attenuation
Common: 60dB @ 5 MHz to 50 MHz, Normal: 90dB @ 100kHz to 50 MHz
Green Environmental Attribute
Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists)
Green Certification or Other Recognition
ENERGY STAR
Amps
20 A
Min. Operating Temp.
-40 Degrees F
System Connection
Series
Max. Operating Temp.
122 Degrees F
UL SPD Type
Type 4
Basic Material
Metallic
Includes Surge Counter
No
Status Indicator
LED Light
Load Surge Current Rating: 10 msec
5 x Nominal
Peak Surge Current Capability: Line to Neutral
13,000 Amps
Peak Surge Current Capability: Neutral to Ground
6,500 Amps
Frequency Response: Common (F-R) 5 MHz to 50 MHz
60 dB Max
Peak Surge Current Capability: Line to Ground
6,500 Amps
Hertz
47-63 Hz
Single-Phase 120 and 240 Vac Model Amperage
3.0, 5.0, 10.0, 20.0
Frequency Response: Normal (F-R) 100 kHz to 50 MHz
90 dB Max
Transient Reduction Typical Category B Ringwave
< 100 V Peak UL 1449
Load Surge Current Rating: 10 sec
2 x Nominal
Operating Temperature
-40°C to +50°C
Peak Surge Current Capability: Per Phase
19,500 Amps
Load Surge Current Rating: 1 sec
3 x Nominal
Transient Reduction Typical Category A Ringwave
< 60 V Peak

Description

Surge Protection Device, Metallic, Amps 20 A, Depth 4.56 in, Enclosure Material Metal
