  11. Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires

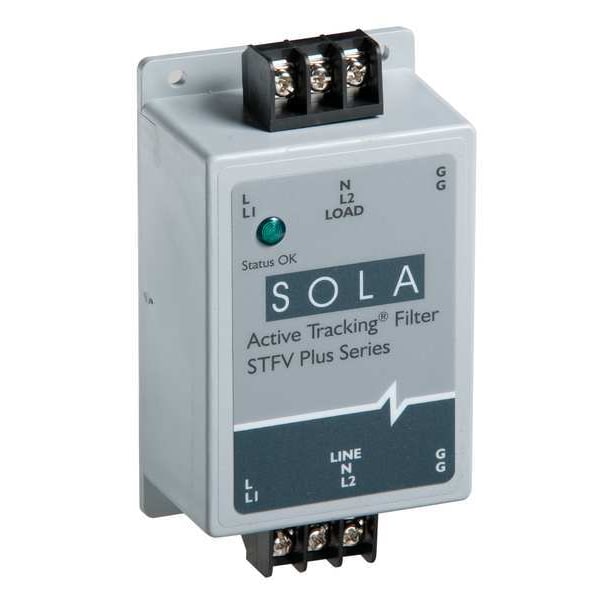

Solahd Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires STFV30010N - main

Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires

  • Mfr # STFV30010N

  • Zoro # G4407575

product price: $1,042.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Surface
Phase
1
Voltage
120V
Number of Poles
1
Number of Wires
2 Wires
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STFV30010N
Zoro #
G4407575
UPC #
783472700363
Country of Origin
Mexico

Dimensions

Length
4 3/4 in
Depth
2.35 in
Width
4 3/4 in

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
1
Voltage
120V
Number of Poles
1
Number of Wires
2 Wires
Modes of Protection
L-G, L-N, N-G
Max. Surge Current Per Mode
12.5kA (L-N, L-G, N-G)
Max. Surge Current per Mode
25 kA
Max. Surge Current per Phase
25 kA
Nominal Discharge Current
30 A
Short Circuit Current Rating
Not Rated
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150V AC
Enclosure Material
Plastic
Wire Gauge
10 AWG
Includes
LED Status Indicator
Standards
CE, CSA, cULus Listed, RoHS, UL Listed
Modular / Nonmodular
Modular
Noise Attenuation
90dB @ 100kHz to 50 MHz
Green Environmental Attribute
Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists)
Green Certification or Other Recognition
ENERGY STAR
System Connection
Series
Max. Operating Temp.
140 Degrees F
Min. Operating Temp.
-40 Degrees F
Amps
30 A
Basic Material
Nonmetallic
Includes Surge Counter
No
Status Indicator
LED Light
Peak Surge Current Capability: Line to Ground
6,500 Amps
Transient Reduction Typical Category B Ringwave
<50 V Peak UL 1449
Load Surge Current Rating: 10 sec
2 x Nominal
Operating Temperature
-40°C to +60°C
Transient Reduction Typical Category A Ringwave
< 10 V Peak
Load Surge Current Rating: 1 sec
3 x Nominal
Peak Surge Current Capability: Line to Neutral
6,500 Amps
Peak Surge Current Capability: Per Phase
13,000 Amps
Frequency Response: 100 kHz to 50 MHz
90 dB Max
Single-Phase 120 and 240 Vac Model Amperage
2.5, 5.0, 7.5, 15.0, 30.0
Load Surge Current Rating: 10 msec
5 x Nominal
Peak Surge Current Capability: Neutral to Ground
6,500 Amps
Hertz
50/60 Hz

Description

Surge Protection Device, Nonmetallic, Amps 30 A, Depth 2.35 in, Enclosure Material Epoxy Encapsulated Plastic
