  11. Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires

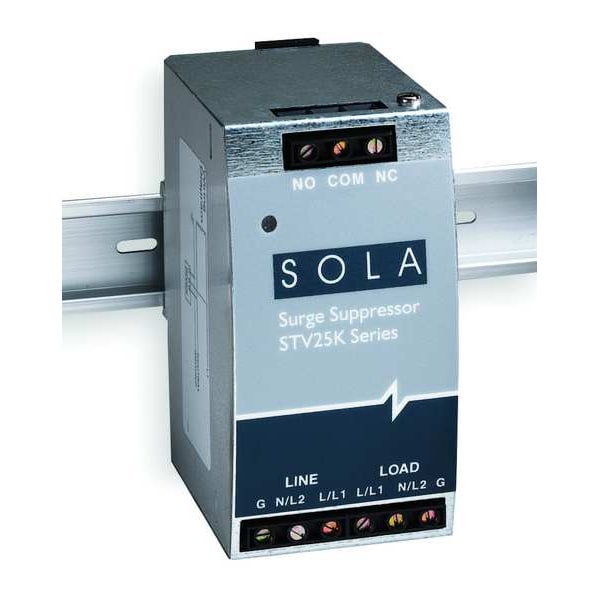

Solahd Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires STV25K10S - main

Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires

  • Mfr # STV25K10S

  • Zoro # G2331262

product price: $354.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN-Rail
Phase
1
Voltage
120V
Number of Poles
1
Voltage Protection Rating
500V (L-G, L-N, N-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STV25K10S
Zoro #
G2331262
UPC #
783472019861
Country of Origin
Mexico

Dimensions

Length
4.87 in
Depth
4 3/4 in
Width
2.56 in

Details

Item
Surge Protection Device
Mounting Style
DIN-Rail
Phase
1
Voltage
120V
Number of Poles
1
Voltage Protection Rating
500V (L-G, L-N, N-G)
Number of Wires
2 Wires
Modes of Protection
L-G, L-N, N-G
Max. Surge Current Per Mode
25kA
Max. Surge Current per Mode
25 kA
Max. Surge Current per Phase
25 kA
Nominal Discharge Current
3 kA
Short Circuit Current Rating
5kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150V AC
IP Rating
IP20
Enclosure Material
Metal
Wire Gauge
12 AWG
Includes
LED Status Indicator
Standards
cULus Listed, RoHS, Type 4
Modular / Nonmodular
Modular
Noise Attenuation
Common 40dB Minimum, Normal: 50dB Minimum
Max. Operating Temp.
140 Degrees F
UL SPD Type
Type 4
Amps
20 A
Min. Operating Temp.
-40 Degrees F
System Connection
Series
Basic Material
Metallic
Mounting
DIN Rail Mount (Chassis Mount Optional)
Status Indicator
LED Light
Includes Surge Counter
No
Hertz
47-63 Hz
Noise Attenuation, Nominal Mode
50 dB Min
Input Voltage Range
120, 240 Vac
Operating Temperature
-40°C to +60°C
Noise Attenuation, Common Mode
40 dB Min
Amperage
20 A
Overload Capacity
SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery
Output Power
25-100 W
UL Recognized Component, Haz. Loc.
Class I, Division 2, Groups A, B, C, D
Output Voltage Range
5, 6, 10, 12, 15, 24, 28, 48, 56 Vdc

Description

Surge Protection Device, Metallic, Amps 20 A, Depth 4.75 in, Enclosure Material Metal
