  5. Polycrystalline Solar Panel, 20 W, 17.2V DC, 1.17 A, 36 Cells, Open End

This item is Discontinued.

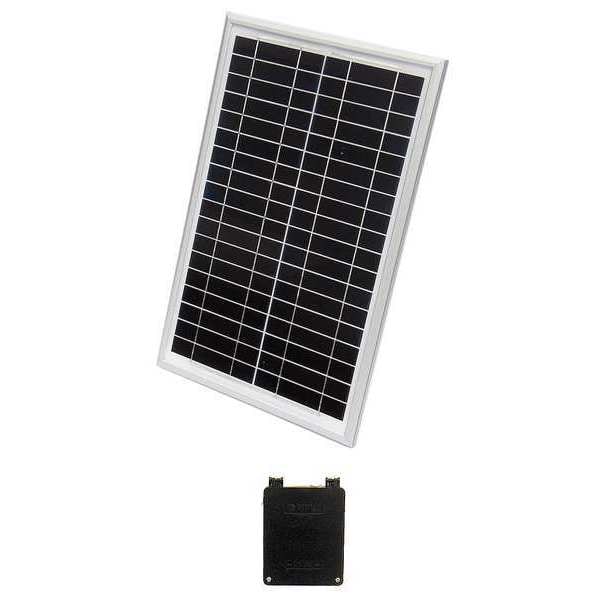

Solartech Power Polycrystalline Solar Panel, 20 W, 17.2V DC, 1.17 A, 36 Cells, Open End SPM020P-F

Polycrystalline Solar Panel, 20 W, 17.2V DC, 1.17 A, 36 Cells, Open End (Discontinued)

  • Mfr # SPM020P-F
  • Zoro # G8049596
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SPM020P-F
Zoro #
G8049596
UPC #
816464010444
Country of Origin
Viet Nam

Dimensions

Overall Width
13.8 in
Overall Height
21.7 in
Overall Depth
1.38 in
Cable Length
No Cable
Depth
1 3/8 in
Height
21 21/32 in
Width
13 3/4 in

Details

Item
Solar Panel
Maximum Power Point
20 W
Cell Type
Polycrystalline
Voltage @ Maximum Power Point
17.2V DC
Current @ Maximum Power Point
1.17 A
Number of Cells
36
Connector
Open End
Open Circuit Voltage
21.7 V
Green Environmental Attribute
Product Contributes to Providing Renewable Energy
Standards
ETL Class I, Division 2, Groups A, B, C and D, UL Listed 1703
Short Circuit Current
1.25 A
Power Tolerance
+/-5%
Frame
Yes
Operating Temp. Range
-40 Degrees to 185 Degrees F
Module Efficiency
10 %
Weight
8.8 lb
Max. System Voltage
1000V DC (TUV)/600V DC (UL)
Includes
Junction Box
Temperature Coefficient of PM
-0.46%/ Degrees K
Maximum Operating Temperature
90 Degrees C
Compatible with Series
F-Series
Junction Box IP Rating
IP65
Rated Snow/Wind Load
30 lb/sq ft
Minimum Operating Temperature
-40 Degrees C
Compatible with Brand
SolarTech
Frame Material
Anodized Aluminum
Maximum System Voltage
600V (UL)
Maximum Series Fuse Rating
10 A
Normal Operating Cell Temperature (NOCT)
48 Degrees C
Nominal Output Power
20 W
Panel Max. Power Point Voltage
17.2V DC
Panel Max. Power Point Current
1.17 A

Description

Solar Panel, Maximum Power Point 20 W, Number of Cells 36, Voltage @ Maximum Power Point 17.2 V, Current @ Maximum Power Point 1.17 A, Connector Open End, Cable Length No Cable, Overall Height 21.7 in, Overall Width 13.8 in, Overall Depth 1.38 in, Compatible with Series F-Series, Includes Junction Box, Cell Type Polycrystalline, Compatible with Brand SolarTech, Weight 8.8 lb, Power Tolerance +/-5 Percent, Short Circuit Current 1.25 A
