  5. Polycrystalline Solar Panel, 50 W, 17.5V DC, 2.9 A, 36 Cells, Drop In

This item is Discontinued.

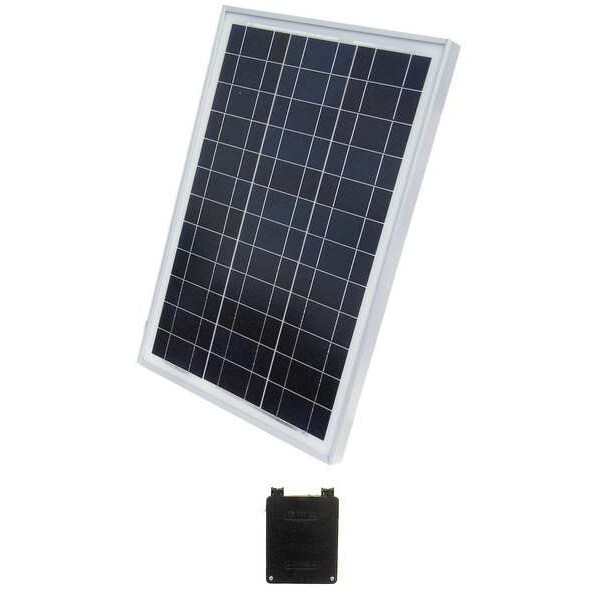

Solartech Power Polycrystalline Solar Panel, 50 W, 17.5V DC, 2.9 A, 36 Cells, Drop In SPM050P-BP

Polycrystalline Solar Panel, 50 W, 17.5V DC, 2.9 A, 36 Cells, Drop In (Discontinued)

  • Mfr # SPM050P-BP
  • Zoro # G8309183
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SPM050P-BP
Zoro #
G8309183
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Width
21.2 in
Overall Height
32.8 in
Overall Depth
1.97 in
Cable Length
No Cable
Height
32 11/16 in
Depth
1 31/32 in
Width
21 1/8 in

Details

Item
Solar Panel
Maximum Power Point
50 W
Cell Type
Polycrystalline
Voltage @ Maximum Power Point
17.5V DC
Current @ Maximum Power Point
2.9 A
Number of Cells
36
Connector
Drop In
Max. System Voltage
1000V DC (TUV)/600V DC (UL)
Power Tolerance
+/-5%
Frame
Yes
Module Efficiency
11.1 %
Operating Temp. Range
-40 Degrees to 185 Degrees F
Standards
ETL Class I, Division 2, Groups A, B, C and D, UL Listed 1703
Open Circuit Voltage
21.8 V
Short Circuit Current
3.2 A
Weight
13.42 lb
Green Environmental Attribute
Product Contributes to Providing Renewable Energy
Includes
Junction Box
Temperature Coefficient of PM
-0.46%/ Degrees K
Maximum Operating Temperature
90 Degrees C
Compatible with Series
J-Series
Minimum Operating Temperature
-40 Degrees C
Frame Material
Anodized Aluminum
Normal Operating Cell Temperature (NOCT)
48 Degrees C
Compatible with Brand
SolarTech
Rated Snow/Wind Load
30 lb/sq ft
Junction Box IP Rating
IP65
Maximum System Voltage
600V (UL)
Maximum Series Fuse Rating
12 A
Panel Max. Power Point Voltage
17.5V DC
Panel Max. Power Point Current
2.9 A
Nominal Output Power
50 W

Description

Solar Panel, Maximum Power Point 50 W, Number of Cells 36, Voltage @ Maximum Power Point 17.5 V, Current @ Maximum Power Point 2.9 A, Connector Junction Box, Cable Length No Cable, Overall Height 32.8 in, Overall Width 21.2 in, Overall Depth 1.97 in, Compatible with Series J-Series, Includes Junction Box, Cell Type Polycrystalline, Compatible with Brand SolarTech, Weight 13.42 lb, Power Tolerance +/-5 Percent, Short Circuit Current 3.2 A
