  9. Polycrystalline Solar Panel, 85 W, 17.9V DC, 4.84 A, 36 Cells, 4mm PV

This item is Discontinued.

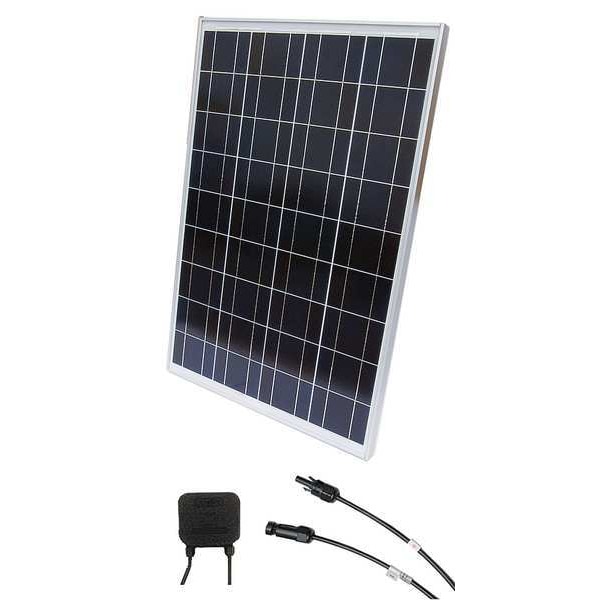

Solartech Power Polycrystalline Solar Panel, 85 W, 17.9V DC, 4.84 A, 36 Cells, 4mm PV SPM085P-TS-N

Polycrystalline Solar Panel, 85 W, 17.9V DC, 4.84 A, 36 Cells, 4mm PV (Discontinued)

  • Mfr # SPM085P-TS-N
  • Zoro # G8373032
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPM085P-TS-N
Zoro #
G8373032
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Width
26.3 in
Overall Height
39.9 in
Overall Depth
1.38 in
Cable Length
3 ft
Height
39 15/16 in
Width
26 5/16 in
Depth
1 3/8 in

Details

Item
Solar Panel
Maximum Power Point
85 W
Cell Type
Polycrystalline
Voltage @ Maximum Power Point
17.9V DC
Current @ Maximum Power Point
4.84 A
Number of Cells
36
Connector
4mm PV
Max. System Voltage
1000V DC (TUV)/600V DC (UL)
Green Environmental Attribute
Product Contributes to Providing Renewable Energy
Short Circuit Current
5.17 A
Operating Temp. Range
-40 Degrees to 185 Degrees F
Frame
Yes
Power Tolerance
+/-5%
Standards
ETL Class I, Division 2, Groups A, B, C and D, UL Listed 1703
Open Circuit Voltage
21.9 V
Module Efficiency
12.53 %
Weight
19.8 lb
Includes
Junction Box
Compatible with Brand
SolarTech
Temperature Coefficient of PM
-0.46%/ Degrees K
Frame Material
Anodized Aluminum
Maximum System Voltage
600V (UL)
Rated Snow/Wind Load
30 lb/sq ft
Junction Box IP Rating
IP65
Normal Operating Cell Temperature (NOCT)
48 Degrees C
Manufacturer Warranty
12 yr 90% Power Output, 2 yr Materials and Worksmanship, 25 yr 80% Power Output
Compatible with Series
N-Series
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
90 Degrees C
Maximum Series Fuse Rating
12 A
Panel Max. Power Point Current
4.84 A
Panel Max. Power Point Voltage
17.9V DC
Nominal Output Power
85 W

Description

Solar Panel, Maximum Power Point 85 W, Number of Cells 36, Voltage @ Maximum Power Point 17.9 V, Current @ Maximum Power Point 4.84 A, Connector MC4, Cable Length 3 ft, Overall Height 39.9 in, Overall Width 26.3 in, Overall Depth 1.38 in, Compatible with Series N-Series, Includes Junction Box, Cell Type Polycrystalline, Compatible with Brand SolarTech, Weight 19.8 lb, Power Tolerance +/-5 Percent, Short Circuit Current 5.17 A
