  9. Polycrystalline Solar Panel, 90 W, 35V DC, 2.59 A, 72 Cells, Drop In
This item is Discontinued.

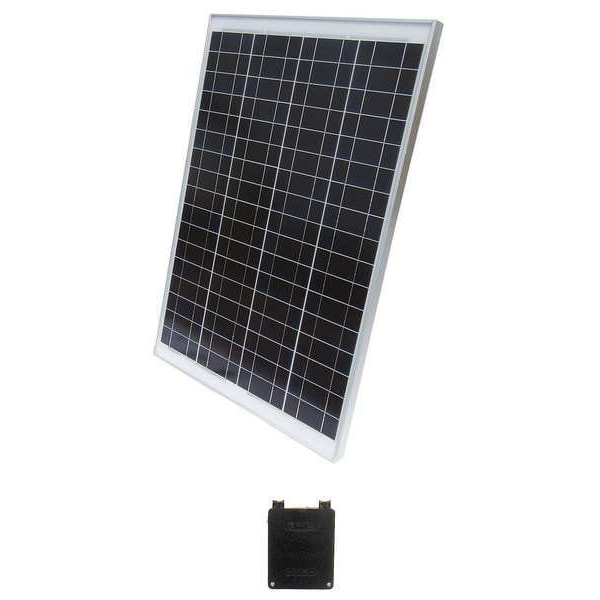

Solartech Power Polycrystalline Solar Panel, 90 W, 35V DC, 2.59 A, 72 Cells, Drop In SPM090-WP-F

Polycrystalline Solar Panel, 90 W, 35V DC, 2.59 A, 72 Cells, Drop In (Discontinued)

  • Mfr # SPM090-WP-F
  • Zoro # G7925504
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPM090-WP-F
Zoro #
G7925504
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Width
26.31 in
Overall Height
36.94 in
Overall Depth
1.38 in
Cable Length
No Cable
Height
36 15/16 in
Depth
1 3/8 in
Width
26 5/16 in

Details

Item
Solar Panel
Maximum Power Point
90 W
Cell Type
Polycrystalline
Voltage @ Maximum Power Point
35V DC
Current @ Maximum Power Point
2.59 A
Number of Cells
72
Connector
Drop In
Green Environmental Attribute
Product Contributes to Providing Renewable Energy
Standards
ETL C1D2, UL Listed 1703
Open Circuit Voltage
42.6 V
Max. System Voltage
1000V DC (TUV)/600V DC (UL)
Short Circuit Current
2.59 A
Module Efficiency
13.4 %
Frame
Yes
Weight
19.8 lb
Power Tolerance
+/-5%
Operating Temp. Range
-40 Degrees to 185 Degrees F
Maximum Operating Temperature
185 Degrees F
Rated Snow/Wind Load
30 lb/sq ft
Compatible with Brand
SolarTech
Maximum System Voltage
1,000V (UL)
Frame Material
Aluminum
Minimum Operating Temperature
-40 Degrees F
Compatible with Series
W-Series
Panel Max. Power Point Current
2.59 A
Panel Max. Power Point Voltage
35.0V DC
Nominal Output Power
90 W

Description

Solar Panel, Maximum Power Point 90 W, Number of Cells 72, Voltage @ Maximum Power Point 35 V, Current @ Maximum Power Point 2.59 A, Connector Junction Box, Cable Length No Cable, Overall Height 36.94 in, Overall Width 26.31 in, Overall Depth 1.38 in, Compatible with Series W-Series, Cell Type Polycrystalline, Compatible with Brand SolarTech, Weight 19.8 lb, Power Tolerance +/-5 Percent, Short Circuit Current 2.59 A, Standards ETL C1D2, UL Listed 1703, Open Circuit Voltage 42.6 V
