Solberg

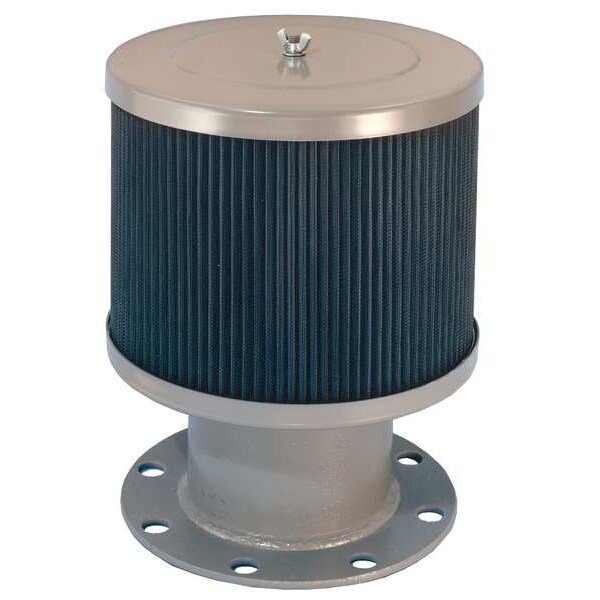

Intake Filter, 6 Flange, 1100 Max CFM

product price: $436.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Outlet (In.) 6 Flange
  • Max. Flow (CFM) 1,100 cfm
  • Filter Rating (Microns) 5 micron
  • Nipple Length (In.) 5 in
  • Filter Media Polyester
See all product information

Product Information

Dimensions

Nipple Length (In.) 5 in
Dia. (In.) 12 in
Height (In.) 15 in
Outlet Size 6 in
Outside Diameter 12 in
Nipple Length 5 in
Overall Height 15 in

Details

Outlet (In.) 6 Flange
Max. Flow (CFM) 1,100 cfm
Filter Rating (Microns) 5 micron
Filter Media Polyester
Filter Efficiency (%) Over 99%
Item Intake Exposed Filter
Housing Material Carbon Steel
Design Open
Temp. Range (F) -15 Degrees to 220 Degrees F
Filtration Efficiency 99 %
Filter Material Polyester
Minimum Operating Temperature -15 Degrees F
Maximum Operating Temperature 220 Degrees F
Filter Rating 5 micron
Connection Style Flange
Outlet Type Flange
Filtered Substance Particulate
Maximum Flow Rate 1,100 cfm
Number of Air Outlets 1

Description

Item Intake Exposed Filter, Connection Style Flange, Design Open, Filter Material Polyester, Filter Rating 5 micron, Filtered Substance Particulate, Filtration Efficiency 99 Percent, Housing Material Carbon Steel, Maximum Flow Rate 1,100 cfm, Maximum Operating Temperature 220 Degrees F, Minimum Operating Temperature -15 Degrees F, Nipple Length 5 in, Number of Air Outlets 1, Outlet Size 6 in, Outlet Type Flange, Outside Diameter 12 in, Overall Height 15 in
