  11. Pneumatic Oil Filter, 300 cfm, 0.3 Microns

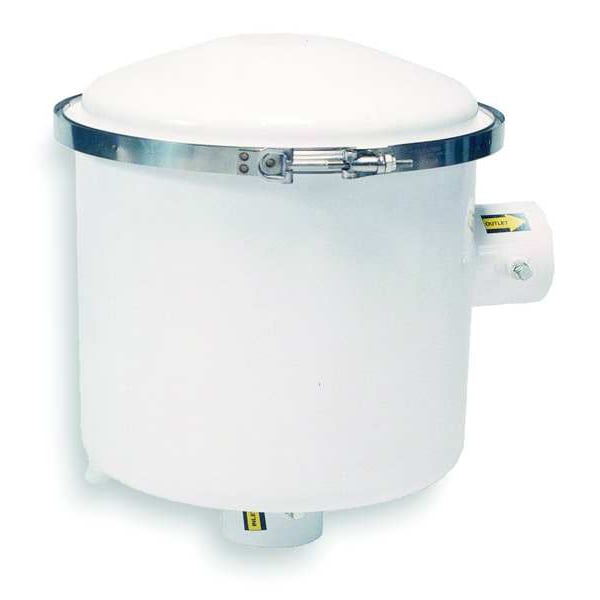

Solberg Pneumatic Oil Filter, 300 cfm, 0.3 Microns HDL-PSG244/2-250C - main

Pneumatic Oil Filter, 300 cfm, 0.3 Microns

  • Mfr # HDL-PSG244/2-250C

  • Zoro # G2242895

product price: $1,144.99
/ea
Free Shipping & Returns

Key Features

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Connection Size - Air Treatment
2-1/2 in NPT
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
300 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HDL-PSG244/2-250C
Zoro #
G2242895
UPC #
-
Country of Origin
United States

Dimensions

Connection Size - Air Treatment
2-1/2 in NPT
Size - Air Treatment
Subcompact
Overall Height
15 5/8 in
Overall Width
15 1/4 in
Drain Port Size
2 1/2 in FNPT
Air Outlet Size
2 1/2 in
Air Inlet Size
2 1/2 in
Inlet Size
2 1/2 in
Outside Diameter
12 in
Outlet Size
2 1/2 in

Details

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.3 micron
Max. Incoming Pressure - Air Treatment
14.7 psi
Max. Flow - Air Treatment
300 cfm
Bowl Material - Air Treatment
Steel
For Removal Of
Oil Aerosols, Particles, Water
Item
Pneumatic Oil Filter
Filter Rating
0.3 micron
Max. Pressure
14.7 psi
Bowl Material
Carbon Steel
Housing Material
Carbon Steel
Drain Type
Manual
Max. Temp.
68 Degrees to 180 Degrees F
Number of Air Inlets
1
Body Material
Carbon Steel
Differential Pressure Indicator Included
No
Number of Air Outlets
1
Air Outlet Gender
Female
Maximum Operating Pressure
5 psi
Air Inlet Type
FPT
Drain Included
Yes
For Fluid Type
Oil
Maximum Flow Rate
250 cfm
Filter Bowl Material
Steel
Filter Type
Coalescing
Series
HDL
Weight
35 lb
Air Outlet Type
FPT
Filter Efficiency
99.97 %
Air Inlet Gender
Female
Maximum Operating Temperature
180 Degrees F
For Substance Type
Oil
Minimum Operating Temperature
68 Degrees F
Type
Vacuum Pump
Gauge Included
No
Outlet Gender
Female
Filtration Efficiency
99.97 %
Application
Any Application Requiring Low Delta P Coalescing of Large Air Volumes, Blower Exhaust Oil Mist, Captures Oil Fog, Mist, or Smoke from Exhaust on Oil Flooded Vacuum Pumps, Cement, Food Processing-Pressure, Industrial Vacuum Processes, Nailers/Staplers, Oil Removal for Pressure Unloading Vents on Piston Compressors, Paper Processing, Vacuum Coating, Vacuum Freeze Dry, Vacuum Outgassing
Outlet Type
FPT
Inlet Gender
Female
Maximum Air Flow
250 scfm
Inlet Type
FPT
Filter Element Material
Polyester

Description

Pneumatic Oil Filter, Outside Diameter 12 in, Inlet Size 2 1/2 in, Inlet Type FPT, Inlet Gender Female, Outlet Size 2 1/2 in, Outlet Type FPT, Outlet Gender Female, Maximum Air Flow 250 scfm, Type Vacuum Pump, Filter Rating 0.3 micron, Filtration Efficiency 99.97 Percent
