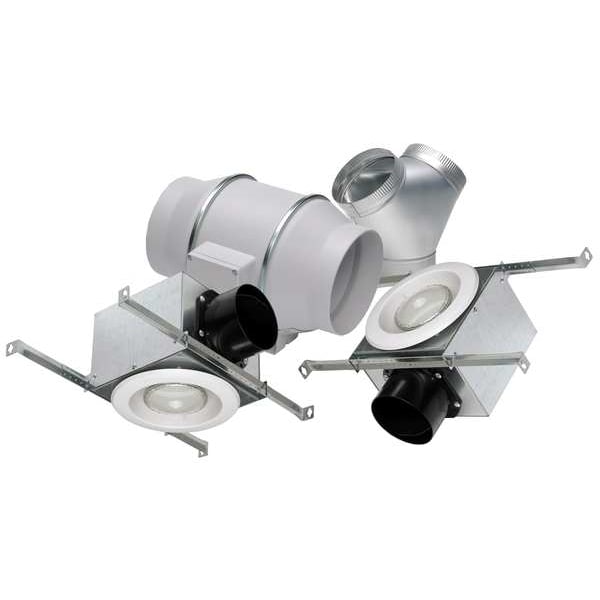

Duct Fan Exhaust Kit, 6 In. Dia.

SOLER & PALAU| Zoro #: G1328835| Mfr #: KIT-TD150L

$390.95 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1328835 Mfr #: KIT-TD150L
Item: Duct Fan Exhaust KitHousing Finish: Off White
Standards: UL, HVI, AMCAMax. Inlet Temp.: 104 Degrees F
Flange Width: 1-1/4"Number of Speeds: 1
Hz: 60Speed Control: Yes
Phase: 1Motor Enclosure: Totally Enclosed
Mounting Position: Horizontal or VerticalHousing Material: Thermoplastic
Bearing Type: BallIncludes: Mounting Bracket and (2) LED Light Grilles
CFM @ 0.100-In. SP: 281/202Inlet and Outlet Dia.: 6"
CFM @ 1.000-In. SP: 35CFM @ 0.000-In. SP: 293/218
Fits Duct Dia.: 6"CFM @ 0.800-In. SP: 110
CFM @ 0.450-In. SP: 215/112CFM @ 0.750-In. SP: 131/24
Voltage: 120CFM @ 0.600-In. SP: 165/70
Max. Wattage: 65CFM @ 0.500-In. SP: 206/105
Width: 7-7/8"CFM @ 0.400-In. SP: 222/119
Motor RPM: 2289CFM @ 0.375-In. SP: 227/128
Max. Amps: 0.542CFM @ 0.250-In. SP: 250/163
Length: 7-7/8"CFM @ 0.200-In. SP: 261/171
CFM @ 0.125-In. SP: 273/193Housing Dia.: 7-7/8"
Height: 8-3/8"Country of Origin (subject to change): Spain

Product Description

Duct Fan Exhaust Kit, Housing Material Thermoplastic, Fits Duct Dia. 6 In., Voltage 120, Max. Amps 0.542, Max. Wattage 65, Number of Speeds 1, Housing Dia. 7-7/8 In., Length 7-7/8 In., Motor RPM 2289, CFM @ 0.000-In. SP 293/218, CFM @ 0.100-In. SP 281/202, CFM @ 0.125-In. SP 273/193, CFM @ 0.200-In. SP 261/171, CFM @ 0.250-In. SP 250/163, CFM @ 0.375-In. SP 227/128, CFM @ 0.400-In. SP 222/119, CFM @ 0.450-In. SP 215/112, CFM @ 0.500-In. SP 206/105, CFM @ 0.600-In. SP 165/70
