  9. Mixed Flow Duct Fan, 6 In. Dia.

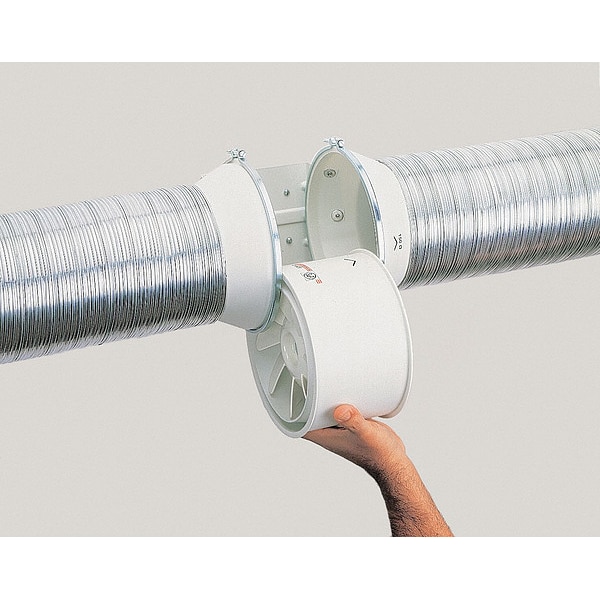

Soler & Palau Mixed Flow Duct Fan, 6 In. Dia. TD-150 - main

Mixed Flow Duct Fan, 6 In. Dia.

  • Mfr # TD-150

  • Zoro # G1910973

product price: $219.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Plastic
Fits Duct Dia.
6 in
Voltage
120v
Max. Amps
0.54 A
Max. Wattage
65/54
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TD-150
Zoro #
G1910973
UPC #
812482010329
Country of Origin
Spain

Dimensions

Fits Duct Dia.
6 in
Housing Dia.
7 7/8 in
Length
8 3/8 in
Inlet and Outlet Dia.
5 7/8 in
Flange Width
1 1/8 in
Overall Diameter
7 7/8 in
Overall Height
5 in
Overall Width
5 in
Duct Diameter
6 in

Details

Item
In-Line Duct Fan
Housing Material
Plastic
Voltage
120v
Max. Amps
0.54 A
Max. Wattage
65/54
Number of Speeds
1
Motor RPM
2300/1700
CFM @ 1.000-In. SP
35 cfm
Standards
cULus, HVI
Speed Control
Mfr. No. 48C172
Motor HP
1/10 hp
Hz
60
Phase
1
Includes
Mounting Bracket
CFM @ 0.250-In. SP
250/163 cfm
Bearing Type
Ball Bearing
CFM @ 0.125-In. SP
273/193 cfm
CFM @ 0.375-In. SP
227/128 cfm
CFM @ 0.000-In. SP
293/218
Mounting Position
Horizontal or Vertical
CFM @ 0.500-In. SP
206/105 cfm
CFM @ 0.750-In. SP
131/24 cfm
Motor Enclosure
Totally Enclosed
Max. Inlet Temp.
104 Degrees F
Green Certification or Other Recognition
HVI(R) Certified
Airflow @ 0.000 in SP
293 cfm
Application
General Purpose
Speed Controllable
Yes
For Fan Type
In-Line Duct Fan
Motor Output Power
65 W
Maximum Inlet Air Temperature
140 Degrees F
Motor Speed
2,300 RPM
Nameplate Voltage
120V AC
Motor IP Rating
IP44
High-Efficiency Motor
No
Mounting Orientation
Horizontal or Vertical

Description

In-Line Duct Fan, For Fan Type In-Line Duct Fan, Airflow @ 0.000 in SP 293 cfm, Duct Diameter 6 in, Motor Output Power 65 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 7 7/8 in, Overall Height 5 in, Overall Width 5 in, Application General Purpose, High-Efficiency Motor No, Housing Material Thermoplastic, Motor Speed 2,300 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Controllable Yes
