Shop SOUNDTUBE

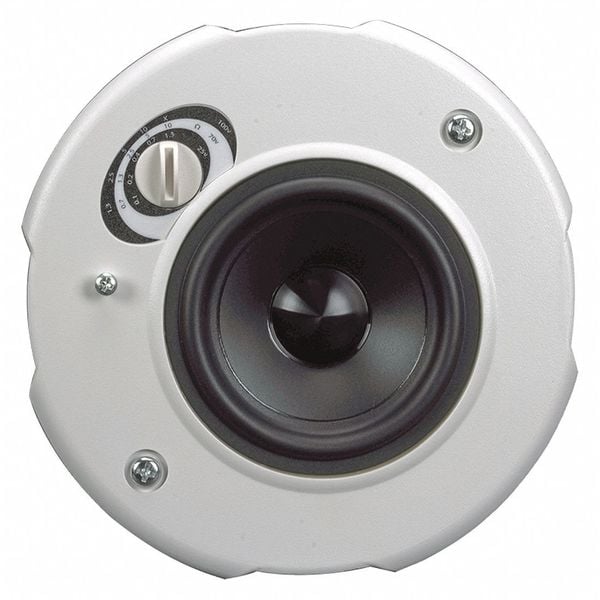

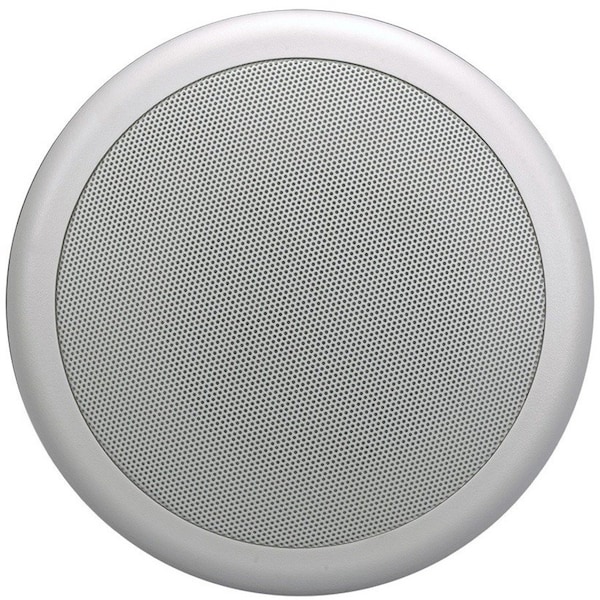

In-Ceiling Speaker, White, 20 Max. Wattage

  • Mfr # CM31-EZ-WH

  • Zoro # G3921972

product price:
$
191.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Mounting
In-ceiling
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CM31-EZ-WH
Zoro #
G3921972
UPC #
-
Country of Origin
China
Item
In-Ceiling Speaker
Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Mounting
In-ceiling
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Conduit Clamp, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket, Wire Nuts
Sensitivity (dB)
85 dB
Weight (Lbs.)
4
Tweeter Composition
Paper
Max. Wattage
20 W
Impedance (Ohms)
8 ohm
Woofer Composition
Polypropylene/Butyl
Frequency Response
190Hz to 12KHz
Transformer Settings
25v/70v/100v
Power Taps @ 75V
10
Watt (RMS)
20
Power Taps @ 25V
1
Application
Indoor/Outdoor
Number of Channels
1
Enclosure Style
Backcan
Output Wattage - RMS
20 W
Tweeter Material
Paper
Woofer Material
Butyl; Polypropylene
Impedance
8 ohm
Power Style
Passive
Dispersion - Conical
45 Degrees
Housing Material
ABS Glass Fiber
Frequency Response - Maximum
22 kHz
Sensitivity
85 dB
For Location
Indoor
Includes Mounting Hardware
Mounting Hardware Included
Transformer Taps @ 70V
10 W
Transformer Taps @ 25V
1.3 W
Includes Transformer
Transformer Included
Compatible Input Voltage
100V, 25V, 70V
Output Wattage - Peak
40 W
IP Rating
IP54
Housing Color
White
Driver Configuration
1-Way
Mounting Style
Flush Mount
Frequency Response - Minimum
115 Hz
Transformer Taps @ Low Voltage
8 ohm

Description

In-Ceiling Speaker, In Ceiling, Overall Height (In.) 9, Overall Width (In.) 8, Overall Length (In.) 8, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Paper, Woofer Dia. (In.) 3 in, Woofer Composition Polypropylene/Butyl, 20 Watt (RMS), Max. Wattage 20 W, Sensitivity (dB) 85 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25v/70v/100v, 1 Power Taps @ 25V, 10 Power Taps @ 75V, Frequency Response 190Hz to 12KHz, Weight (Lbs.) 4
