  11. In-Ceiling Speaker, White, 64 Max. Wattage

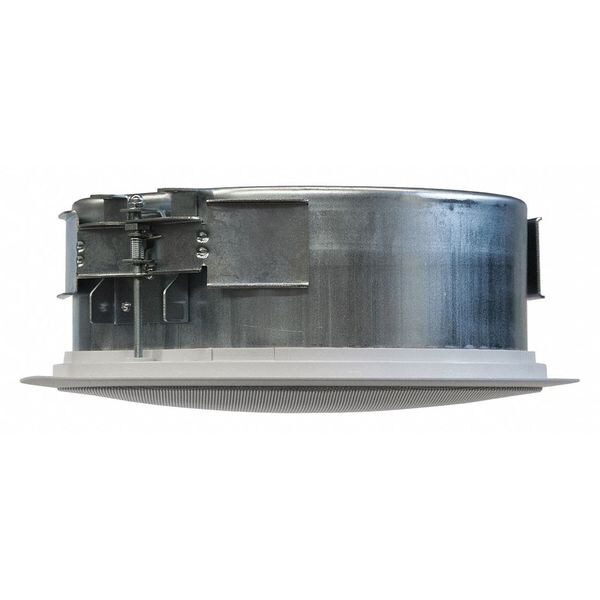

Soundtube In-Ceiling Speaker, White, 64 Max. Wattage CM82-EZS-II-WH - main

In-Ceiling Speaker, White, 64 Max. Wattage

  • Mfr # CM82-EZS-II-WH

  • Zoro # G3922270

product price: $268.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM82-EZS-II-WH
Zoro #
G3922270
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
13
Overall Height (In.)
6
Woofer Dia. (In.)
8 in
Tweeter Dia. (In.)
1 in
Overall Width (In.)
13
Overall Depth
11 3/4 in
Tweeter Diameter
1 in
Woofer Diameter
8 in
Overall Height
4 in
Overall Width
11 3/4 in

Details

Item
In-Ceiling Speaker
Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket
Sensitivity (dB)
88 dB
Weight (Lbs.)
9
Tweeter Composition
Silk
Woofer Composition
Polypropylene/Butyl
Impedance (Ohms)
16 ohm
Max. Wattage
64 W
Watt (RMS)
64
Power Taps @ 25V
8
Frequency Response
109Hz to 19KHz
Power Taps @ 75V
64
Transformer Settings
25v/70v/100v
Number of Channels
1
Frequency Response - Minimum
65 Hz
Housing Color
White
Driver Configuration
2-Way
Output Wattage - RMS
64 W
Woofer Material
Fiber
Includes Transformer
Transformer Included
Dispersion - Conical
40 Degrees
Compatible Input Voltage
100V, 25V, 70V
Includes Mounting Hardware
Mounting Hardware Included
For Location
Indoor
Sensitivity
86 dB
Mounting Style
Flush Mount
Housing Material
ABS Glass Fiber
Transformer Taps @ Low Voltage
16 ohm
Transformer Taps @ 25V
8 W
Frequency Response - Maximum
22 kHz
Enclosure Style
Backcan
Tweeter Material
Silk
Output Wattage - Peak
128 W
Transformer Taps @ 70V
64 W
Power Style
Passive
Impedance
16 ohm

Description

In-Ceiling Speaker, In Ceiling, Overall Height (In.) 6, Overall Width (In.) 13, Overall Length (In.) 13, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Silk, Woofer Dia. (In.) 8 in, Woofer Composition Polypropylene/Butyl, 64 Watt (RMS), Max. Wattage 64 W, Sensitivity (dB) 88 dB, Impedance (Ohms) 16 ohm, Transformer Settings 25v/70v/100v, 8 Power Taps @ 25V, 64 Power Taps @ 75V, Frequency Response 109Hz to 19KHz, Weight (Lbs.) 9
