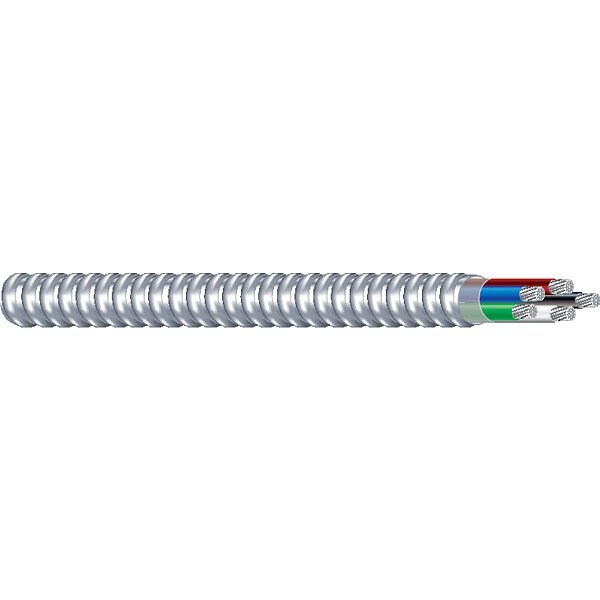

MC Metallic Clad Building Cable, Aluminum, 3C, Black, Stranded

  • Mfr # 55428101

  • Zoro # G216507314

product price:  $7,561.99
/ea
Item requires special delivery charges. A $230.00 per item surcharge will be applied.

Key Features

Trade Designation
MC
Wire Size
1 AWG
Conductor Material
Aluminum
Number of Conductors
3C
Jacket Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55428101
Zoro #
G216507314
UPC #
032886068102
Country of Origin
United States

Dimensions

Wire Size
1 AWG
Conductor Size
1 AWG
Grounding Conductor Size
1/0 AWG
Overall Length
1,000 ft
Nominal Outside Diameter
1.2 in

Details

Item
Metallic Clad Building Cable
Trade Designation
MC
Conductor Material
Aluminum
Number of Conductors
3C
Jacket Color
Black
Jacket Material
Aluminum
Conductor Design
Stranded
Voltage
600 V
Standards
A-A59544, Article 330, FT4/IEEE 1202, J-C-30B, NEC, NFPA 70, REACH/RoHS-2 (Chemical Limit), UL 1, 2, and 3 Hour Through Penetration Firestop Systems, UL 1569, UL 1685, UL 83
Grounding Conductor Material
Aluminum
Ampacity at Maximum Temperature
145 A
Series
Armorlite(R)
Number of Ground Conductors
1
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1
Number of Strands
8
Temperature Rating - Maximum Wet
194 Degrees F
Packaging
Reel
Trade Designation - Conductors
XHHW-2
Conductor Insulation Color
Black, Black/Red, Black/White
Grounding Conductor Insulation Material
Uninsulated
Application
Commercial, Control, Industrial, Institutional, Lighting, Multi-Residential Buildings, Power, Signal Circuits
Conductor Insulation Material
XLPE
Grounding Conductor Insulation Color
Bare
Number of Shielded Pairs
0
Includes Bonding Wire
No Bonding Wire
Number of Neutrals
0
Temperature Rating - Maximum Dry
194 Degrees F

Description

Metallic Clad Building Cable
