  11. TFFN Building Wire, Copper, 16 AWG, 1C, Beige, Stranded, 500 ft

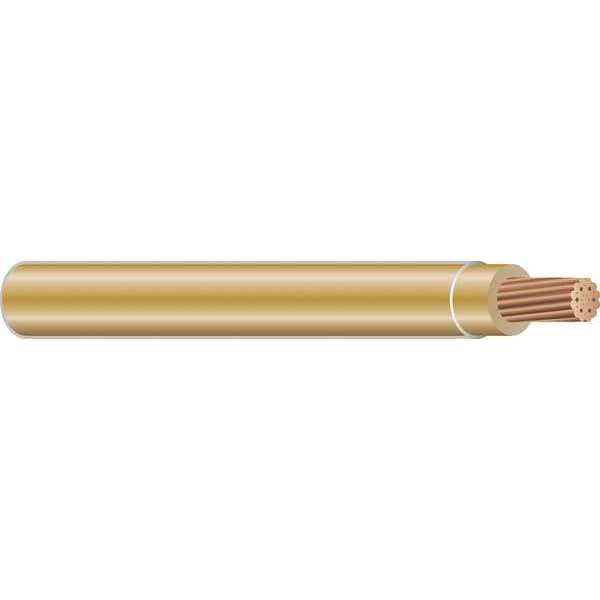

Southwire TFFN Building Wire, Copper, 16 AWG, 1C, Beige, Stranded, 500 ft 29753101 - main

TFFN Building Wire, Copper, 16 AWG, 1C, Beige, Stranded, 500 ft

  • Mfr # 29753101

  • Zoro # G0183976

product price: $99.69
/ea
Free Shipping & Returns

Key Features

Trade Designation
TFFN
Wire Size
16 AWG
Conductor Material
Copper
Number of Conductors
1C
Jacket Color
Beige
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29753101
Zoro #
G0183976
UPC #
032886227752
Country of Origin
United States

Dimensions

Wire Size
16 AWG
Length
500 ft
Nominal Outside Dia.
0.1 in
Jacket Thickness (Mils)
5mils
Insulation Thickness (Mils)
15mils
Nominal Outside Diameter
0.1 in
Minimum Bend Radius
3/8 in
Conductor Size
16 AWG
Overall Length
500 ft

Details

Item
Building Wire
Trade Designation
TFFN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Beige
Jacket Color
Beige
Jacket Material
Nylon
Conductor Design
Stranded
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed
Max. Amps
8
Stranding
26
Packaging
Spool
Construction
ConstructionSouthwire® Type TFFN or MTW or AWM copper conductors are annealed (soft) copper, insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) jacket is applied. Available in black, white, red, blue, green, yellow, orange, brown, purple, gray, and pink. Some colors standard, some subject to economic order quantity.
Applications
ApplicationSouthwire® Type TFFN may be used as fixture wire, machine tool wiring, or appliance wiring material as specified in the National Electrical Code. Voltage for all applications is 600 volts. Allowable temperatures are as follows:
Fire Resistance Rating
Not Rated
Conductor Insulation Material
Nylon, PVC
Temperature Rating - Maximum Dry
194 Degrees F
Conductor Insulation Color
Tan
Number of Strands
26

Description

Building Wire, Trade Designation TFFN, Wire Size 16 AWG, Wire Color Beige, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.1 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 26

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
