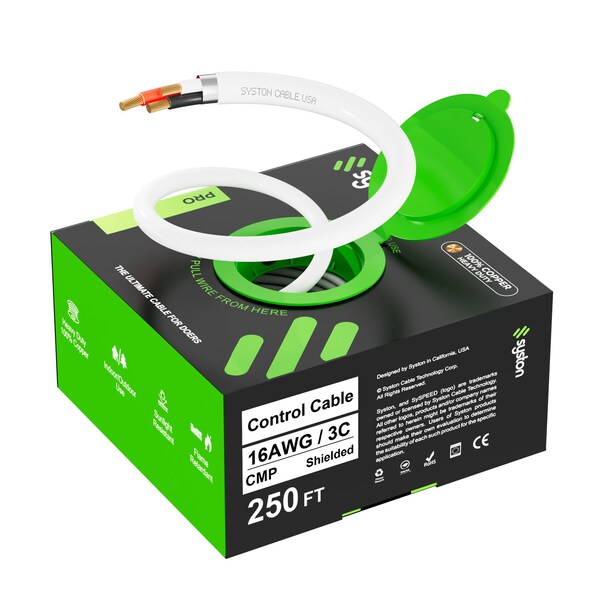

16/3 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 250 ft
Mfr # 5788-250WH
Zoro # G922806206
product price:Â $191.99
/ea
Free Shipping & Returns
Key Features
Number of Conductors
3
Jacket Material
PVC
Conductor Design
Stranded
Temp. Rating
-4 Degrees to 167 Degrees F
Nominal Outside Dia.
0.217 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5788-250WH
Zoro #
G922806206
UPC #
-
Country of Origin
China
Dimensions
Nominal Outside Dia.
0.217 in
Length
250 ft
Wire Size
16 AWG
Details
Number of Conductors
3
Jacket Material
PVC
Conductor Design
Stranded
Temp. Rating
-4 Degrees to 167 Degrees F
Item
Control Cable
Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Voltage
300 V
Conductor Material
Copper
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Jacket Color
White
Description
SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 16 AWG 3 Stranded Conductors Shielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 3 (Twisted) Size: 16 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.217 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
