  11. TFFN Building Wire, Copper, 16 AWG, 1C, Purple, Stranded, 500 ft
Southwire TFFN Building Wire, Copper, 16 AWG, 1C, Purple, Stranded, 500 ft 27041301 - main

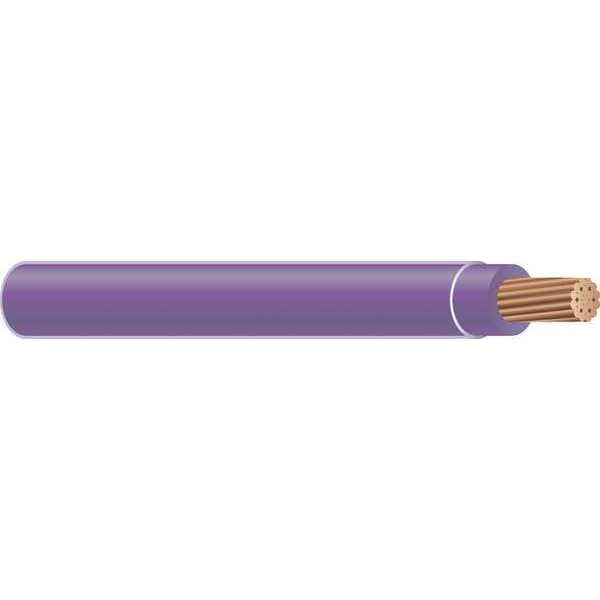

TFFN Building Wire, Copper, 16 AWG, 1C, Purple, Stranded, 500 ft

  • Mfr # 27041301

  • Zoro # G0183967

product price: $99.69
/ea
Free Shipping & Returns

Key Features

Trade Designation
TFFN
Wire Size
16 AWG
Conductor Material
Copper
Number of Conductors
1C
Jacket Color
Purple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
27041301
Zoro #
G0183967
UPC #
032886100598
Country of Origin
United States

Dimensions

Wire Size
16 AWG
Length
500 ft
Nominal Outside Dia.
0.1 in
Jacket Thickness (Mils)
5mils
Insulation Thickness (Mils)
15mils
Nominal Outside Diameter
0.1 in
Minimum Bend Radius
3/8 in
Conductor Size
16 AWG
Overall Length
500 ft

Details

Item
Building Wire
Trade Designation
TFFN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Purple
Jacket Color
Purple
Jacket Material
Nylon
Conductor Design
Stranded
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed
Max. Amps
8
Packaging
Spool
Stranding
26
Applications
ApplicationSouthwire® Type TFFN may be used as fixture wire, machine tool wiring, or appliance wiring material as specified in the National Electrical Code. Voltage for all applications is 600 volts. Allowable temperatures are as follows:
Construction
ConstructionSouthwire® Type TFFN or MTW or AWM copper conductors are annealed (soft) copper, insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) jacket is applied. Available in black, white, red, blue, green, yellow, orange, brown, purple, gray, and pink. Some colors standard, some subject to economic order quantity.
Fire Resistance Rating
Not Rated
Temperature Rating - Maximum Dry
194 Degrees F
Conductor Insulation Material
Nylon, PVC
Conductor Insulation Color
Purple
Number of Strands
26

Description

Building Wire, Trade Designation TFFN, Wire Size 16 AWG, Wire Color Purple, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.1 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 26

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
