  6. 14/4 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 250 ft

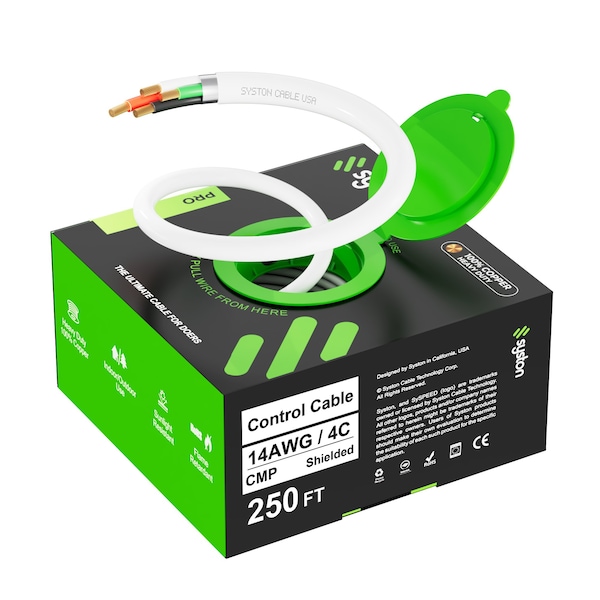

Syston Cable Technology 14/4 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 250 ft 5843-250WH - main

14/4 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 250 ft

  • Mfr # 5843-250WH

  • Zoro # G922806190

product price:  $314.99
/ea
Free Shipping & Returns

Key Features

Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Jacket Material
PVC
Conductor Design
Stranded
Jacket Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5843-250WH
Zoro #
G922806190
UPC #
-
Country of Origin
China

Dimensions

Length
250 ft
Wire Size
14 AWG
Nominal Outside Dia.
0.291 in

Details

Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Item
Control Cable
Jacket Material
PVC
Conductor Design
Stranded
Jacket Color
White
Conductor Material
Copper
Number of Conductors
4
Voltage
300 V
Temp. Rating
-4 Degrees to 167 Degrees F

Description

SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 14 AWG 4 Stranded Conductors Shielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 4 (Twisted) Size: 14 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.291 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
