  11. TFFN Building Wire, Copper, 18 AWG, 1C, Green, Stranded, 500 ft

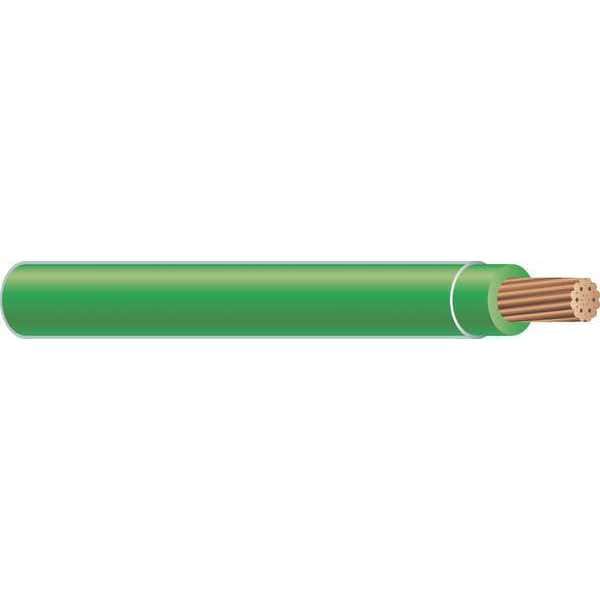

Southwire TFFN Building Wire, Copper, 18 AWG, 1C, Green, Stranded, 500 ft 27025601 - main

TFFN Building Wire, Copper, 18 AWG, 1C, Green, Stranded, 500 ft

  • Mfr # 27025601

  • Zoro # G0183653

product price: $80.89
/ea
Free Shipping & Returns

Key Features

Trade Designation
TFFN
Wire Size
18 AWG
Conductor Material
Copper
Number of Conductors
1C
Jacket Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
27025601
Zoro #
G0183653
UPC #
032886226403
Country of Origin
United States

Dimensions

Wire Size
18 AWG
Length
500 ft
Nominal Outside Dia.
0.09 in
Insulation Thickness (Mils)
15mils
Jacket Thickness (Mils)
5mils
Conductor Size
18 AWG
Minimum Bend Radius
5/16 in
Overall Length
500 ft
Nominal Outside Diameter
0.09 in

Details

Item
Building Wire
Trade Designation
TFFN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Green
Jacket Color
Green
Jacket Material
Nylon
Conductor Design
Stranded
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed
Packaging
Spool
Stranding
16
Max. Amps
6
Application
Fixture Wire, Machine Tool Wiring
Construction
ConstructionSouthwire® Type TFFN or MTW or AWM copper conductors are annealed (soft) copper, insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) jacket is applied. Available in black, white, red, blue, green, yellow, orange, brown, purple, gray, and pink. Some colors standard, some subject to economic order quantity.
Applications
ApplicationSouthwire® Type TFFN may be used as fixture wire, machine tool wiring, or appliance wiring material as specified in the National Electrical Code. Voltage for all applications is 600 volts. Allowable temperatures are as follows:
Conductor Insulation Material
Nylon, PVC
Fire Resistance Rating
Not Rated
Conductor Insulation Color
Green
Number of Strands
16
Temperature Rating - Maximum Dry
194 Degrees F
Ampacity at Maximum Temperature
14 A

Description

Building Wire, Trade Designation TFFN, Wire Size 18 AWG, Wire Color Green, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.09 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 16

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
