  6. THHN Building Wire, Copper, 10 AWG, 1C, Green, Stranded, 2500 ft

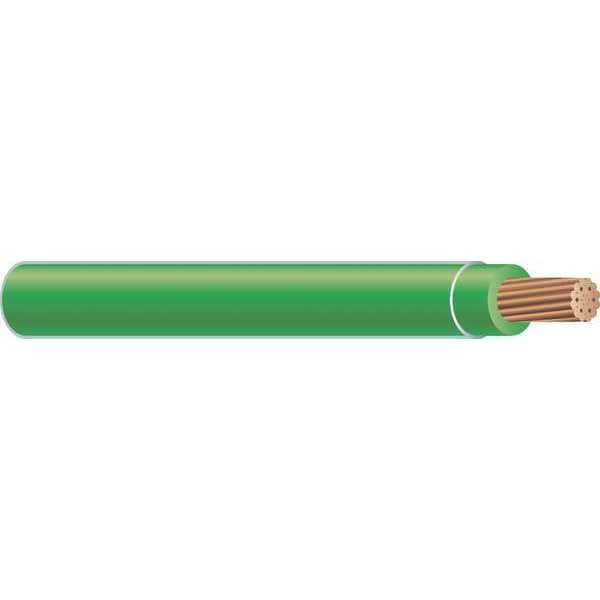

Southwire THHN Building Wire, Copper, 10 AWG, 1C, Green, Stranded, 2500 ft 22977306 - main

THHN Building Wire, Copper, 10 AWG, 1C, Green, Stranded, 2500 ft

  • Mfr # 22977306

  • Zoro # G0209571

product price:  $1,301.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
THHN
Wire Size
10 AWG
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22977306
Zoro #
G0209571
UPC #
032886230424
Country of Origin
United States

Dimensions

Wire Size
10 AWG
Length
2500 ft
Nominal Outside Dia.
0.16 in
Jacket Thickness (Mils)
5mils
Insulation Thickness (Mils)
20mils
Nominal Outside Diameter
0.16 in
Minimum Bend Radius
11/16 in
Conductor Size
10 AWG
Overall Length
2,500 ft

Details

Item
Building Wire
Trade Designation
THHN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Green
Jacket Color
Green
Jacket Material
Nylon
Conductor Design
Stranded
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed
Stranding
19
Max. Amps
30
Packaging
Spool
Application
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Applications
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Construction
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C
30
Conductor Insulation Material
Nylon, PVC
Fire Resistance Rating
Not Rated
Conductor Insulation Color
Green
Temperature Rating - Maximum Wet
167 Degrees F
Number of Strands
19
Temperature Rating - Maximum Dry
194 Degrees F

Description

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Green, Length 2,500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 19

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
