  11. THHN Building Wire, Copper, 12 AWG, 1C, Gray, Stranded, 500 ft

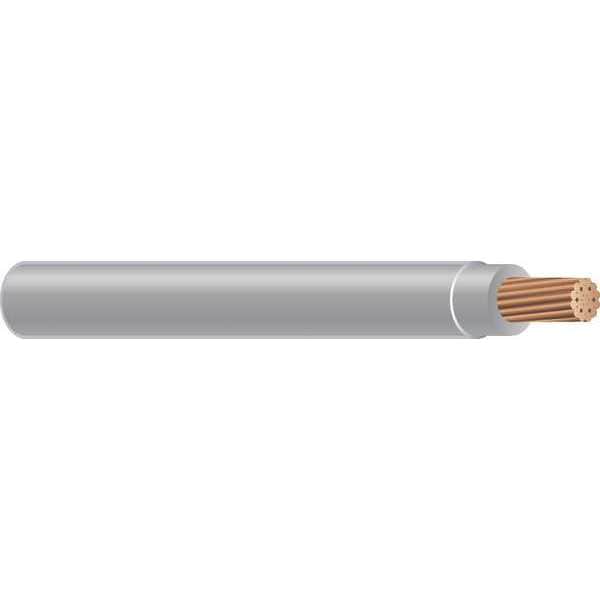

Southwire THHN Building Wire, Copper, 12 AWG, 1C, Gray, Stranded, 500 ft 22972401 - main

THHN Building Wire, Copper, 12 AWG, 1C, Gray, Stranded, 500 ft

  • Mfr # 22972401

  • Zoro # G0209352

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
THHN
Wire Size
12 AWG
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22972401
Zoro #
G0209352
UPC #
032886229602
Country of Origin
United States

Dimensions

Wire Size
12 AWG
Length
500 ft
Nominal Outside Dia.
0.13 in
Jacket Thickness (Mils)
5mils
Insulation Thickness (Mils)
15mils
Conductor Size
12 AWG
Nominal Outside Diameter
0.13 in
Overall Length
500 ft
Minimum Bend Radius
1/2 in

Details

Item
Building Wire
Trade Designation
THHN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Gray
Jacket Color
Gray
Jacket Material
Nylon
Conductor Design
Stranded
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed, E34382
Max. Amps
20
Packaging
Spool
Stranding
19
Application
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Applications
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Construction
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C
20
Number of Strands
19
Conductor Insulation Color
Gray
Temperature Rating - Maximum Wet
167 Degrees F
Conductor Insulation Material
Nylon, PVC
Fire Resistance Rating
Not Rated
Temperature Rating - Maximum Dry
194 Degrees F

Description

This Southwire Building Wire is a great solution for residential and commercial applications. The wire is made of THHN conductors, which are rated at 600V AC. This building wire has a length of 500 ft and 12 AWG. It has a gray nylon jacket that makes it resistant to cuts, abrasion, moisture, chemicals and solvents. The PVC insulation protects against oil, gasoline and other fluids. You will want to use this Southwire Building Wire for your next project.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
