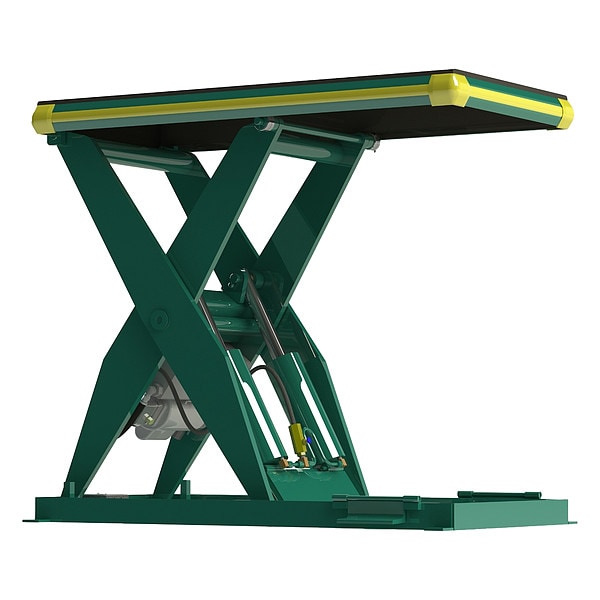

Scissor Lift Table, 2000 lb. Cap, 24"W, 48"L

Mfr # LS2-36
Zoro # G2183189

5,336.99

Additional $285.00 delivery surcharge applies per item.

Key Features

Lift Table Item

Scissor Lift Table

Mobile/Stationary

Stationary

Lift Mechanism

Hydraulic

Lift Mobility

Electric Lift

Lift Control

Foot Control

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LS2-36
Zoro #: G2183189
UPC #: -
Country of Origin: United States

Dimensions

Lifting Height Max.: 42 3/4 in
Lifting Height Min.: 6 3/4 in
Platform Length: 48 in
Lowered Height: 6-3/4 in
Platform Width: 24 in
Raised Height: 42-3/4 in
Overall Height: 43 1/4 in
Overall Length: 55 1/2 in
Overall Width: 31 1/2 in
Minimum Lifting Height: 7 1/4 in
Maximum Lifting Height: 43 1/4 in
Cord Length: 10 ft
Wire Rope Length: 55 1/2 in
Length: 55 1/2 in

Details

Lift Table Item: Scissor Lift Table
Mobile/Stationary: Stationary
Lift Mechanism: Hydraulic
Lift Mobility: Electric Lift
Lift Control: Foot Control
Lift Table Platform Style: Turntable
Load Capacity: 2,000 lb
Item: Scissor Lift Table
Voltage: 115V AC
Phase: 1
Up Speed Seconds: 21 sec
Lift Voltage: 115V AC
Includes: Footswitch, Vinyl Bellows
HP: 1
Number of Posts: 0
Frame Material: Steel
Platform Style: Stationary
Powered By: Electric
Power Source: Electric
Motor Horsepower: 1 hp
Platform Gauge: 3/16 in
Number of Lifting Posts: 0
Up Speed Time: 21 sec
Maximum Load Capacity: 2,000 lb
Platform Material: Steel
Operating Voltage: 115V AC
Power Source - TS Only: Electric
Power Source - old: Electric

Description

This Southworth scissor lift table has a maximum load capacity of 2,000 lb and features a hydraulic lift mechanism powered by a 1 hp electric motor, controlled via footswitch. It operates on 115V AC, single phase, with an up-speed time of 21 seconds. The unit includes a footswitch and vinyl bellows, with a 10 ft cord length. The platform is turntable style, constructed of 3/16 in gauge steel, measuring 48 in long by 24 in wide. The frame is steel construction with 0 lifting posts. Overall footprint is 55-1/2 in L x 31-1/2 in W. Manufactured in the United States, this is a stationary unit (not mobile). Specifications Load Capacity: 2,000 lb (max) Platform Dimensions: 48 in L x 24 in W Platform Material: Steel | Platform Gauge: 3/16 in Lift Mechanism: Hydraulic | Powered By: Electric | Motor: 1 hp Voltage: 115V AC | Phase: 1 Lift Control: Foot Control | Includes: Footswitch, Vinyl Bellows Up Speed Time: 21 sec Cord Length: 10 ft Overall Dimensions: 55-1/2 in L x 31-1/2 in W Frame Material: Steel Country of Origin: United States
