Sp Scienceware

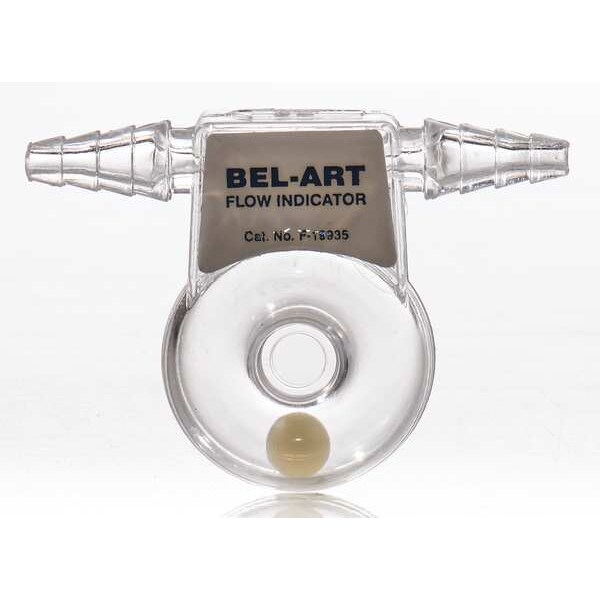

Flow Indicator, Polycarbonate

product price: $45.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Polycarbonate
  • Type Ball Indicator, Water/Liquid
  • For Pipe Size 1/4 in to 3/8 in
  • Connection Size 3/8 in
  • Connection Type Barbed
See all product information

Product Information

Dimensions

For Pipe Size 1/4 in to 3/8 in
Connection Size 3/8 in
Length 3 in
Length (In.) 3"
Connection Size (In.) Will accept 1/4" to 3/8" ID Tubing
Height (In.) 2-1/4"
Height 2 1/4 in
Overall Length 2.3 in
Overall Width 1.2 in

Details

Item Flow Indicator
Housing Material Polycarbonate
Type Ball Indicator, Water/Liquid
Connection Type Barbed
Max. Pressure 10 psi
Wetted Materials Nylon, Polycarbonate
Max. Viscosity 31 SUS
Flow Range 1 to 15 LPM
Fluid Temp. Range 50 Degrees to 148 Degrees F
Fitting 1/4 in to 3/8 in
Max. Pressure (PSI) 10 p.s.i.g.
Display Nylon Indicator Ball will rotate in circular channel during flow
Flow Direction Horizontal, Vertical
Indicator Type Ball
Media Temperature - Minimum 40 Degrees F
Operating Pressure - Maximum 10 psig
Media Temperature -Maximum 175 Degrees F
For Media Type Water
Body Material Polycarbonate
Wetted Material Nylon, Polycarbonate

Description

Flow Indicator, Indicator Type Ball, Body Material Polycarbonate, Connection Size 3/8 in, Connection Type Barbed, Operating Pressure - Maximum 10 psig, Sight Diameter Not Applicable, Number of Windows Not Applicable, Flow Direction Horizontal, Vertical, Media Temperature - Minimum 40 Degrees F, Media Temperature -Maximum 175 Degrees F, Seal Material Not Applicable, For Media Type Water, Overall Length 2.3 in, Overall Width 1.2 in, Wetted Material Nylon, Polycarbonate

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
