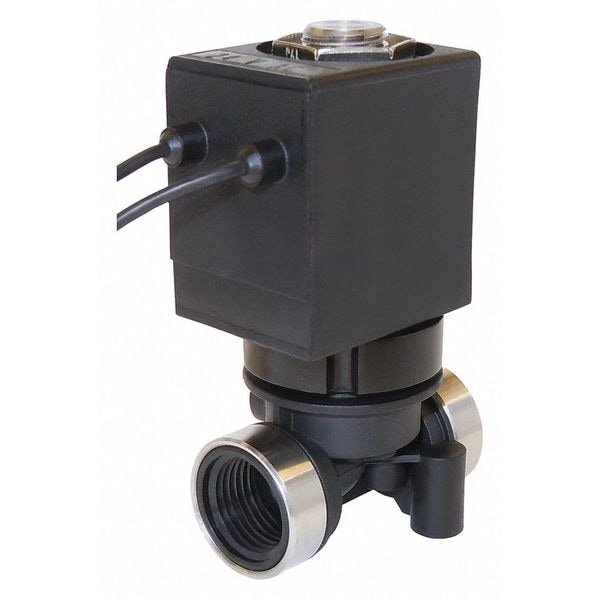

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, Poppet, Direct Acting
Mfr # 6200-E60-AAB2B
Zoro # G7846973
product price:
$
53.59
/ea
Key Features
For Media
Air, Caustics, Inert Gases, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6200-E60-AAB2B
- Zoro #
- G7846973
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/4 in
- Overall Length
- 1-13/16 in
- Overall Height
- 3-7/32 in
- Overall Width
- 1-15/32 in
- Orifice Diameter
- 5/32 in
- Wire Rope Length
- 1 13/16 in
- Length
- 1 13/16 in
Description
The SPARTAN SCIENTIFIC 6200-E60-AAB2B is a direct acting, 2-way/2-position solenoid valve with a normally closed poppet design. It features a glass-filled nylon body and is equipped with included coil and sealing components. Designed for general purpose applications, this valve controls the passage of air, inert gases, light oil, and water. The valve is rated for operation at 12 V DC and has a coil insulation class F. It is rated for outdoor use, with a NEMA 4 enclosure and an IP65 rating, rated for ambient temperatures 50°F to 122°F and fluids up to 140°F. The valve has a nominal pipe size of 1/4 inch with NPT inlet and outlet connections.*
Key Features:
- Operating Voltage and Power: 12 V DC, 10 W
- Valve Design: 2-Way/2-Position, Normally Closed poppet type
- Material: Glass Filled Nylon body with EPDM seals
- Connection Type: NPT inlet and outlet with 1/4 in nominal pipe size
- Operating Pressure Differential: Minimum 0 psi, Maximum 80 psi for air, inert gases, light oil, and water
- Flow Capacity: Cv of 0.52 through a 5/32 in orifice diameter
- Physical Dimensions: Overall Length 1-13/16 in, Width 1-15/32 in, Height 3-7/32 in
- Coil and Protection: Includes coil; coil enclosure is IP65-rated, providing dust-tight and water ingress protection
- Environmental Ratings: NEMA 4 enclosure, IP65 rating, rated for outdoor environments
- Electrical Connections: Wire leads
- Seal Material: EPDM
- Standards: CE certified
