Shop SPARTAN VALVES

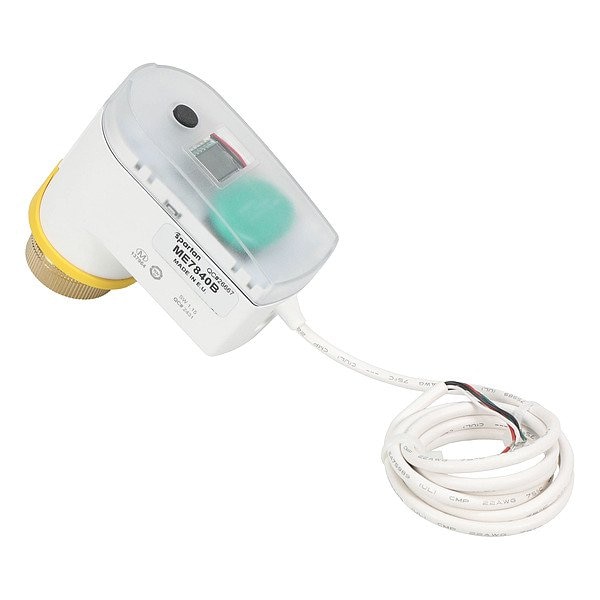

Electric Valve Actuator, 24V AC/DC

  • Mfr # ME-7840B

  • Zoro # G815289642

product price:
$
414.99
/ea
Free Shipping & Returns

Key Features

Torque
540 in-lb
Cycle Time
15 sec
Voltage
24V AC/DC
Overall Depth
1 7/8 in
Installation Orientation
Versatile
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ME-7840B
Zoro #
G815289642
UPC #
-
Country of Origin
Canada

Dimensions

Overall Depth
1 7/8 in
Electrical Lead Length
30 in
Overall Width
3 1/2 in
Stroke Length
4 mm
Overall Height
3 1/8 in

Details

Item
Electric Valve Actuator
Torque
540 in-lb
Cycle Time
15 sec
Voltage
24V AC/DC
Installation Orientation
Versatile
Compatible Valve Action
Normally Closed, Normally Open
Housing Material
Polyamide
Return Action
Non-Spring Return
Includes Electrical Leads
Electrical Leads Included
Operating Temperature - Maximum
120 Degrees F
Control Signal
Proportional
Operating Temperature - Minimum
32 Degrees F
Product Type
Electric Valve Actuator
Frequency
50/60 Hz
Electrical Connection Type
Cable
NEMA Rating
3
Application
HVAC Systems
Power Failure Action
Stem Up
Compatible Valve Body Pattern
Two-Way
Power Consumption
2.6 VA

Description

Electric Valve Actuator, Application HVAC Systems, Auxiliary Contact Form Not Applicable, Compatible Close-Off Pressure Not Applicable, Compatible Valve Action Normally Closed, Normally Open, Compatible Valve Body Pattern Two-Way, Control Signal Proportional, Cycle Time 15 sec, Electrical Connection Type Cable, Electrical Lead Length 30 in, Frequency 50/60 Hz, Housing Material Polyamide, Includes Electrical Leads Electrical Leads Included, Installation Orientation Versatile, NEMA Rating 3
